Technogym Selection M810 - Page 196

SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 14.10

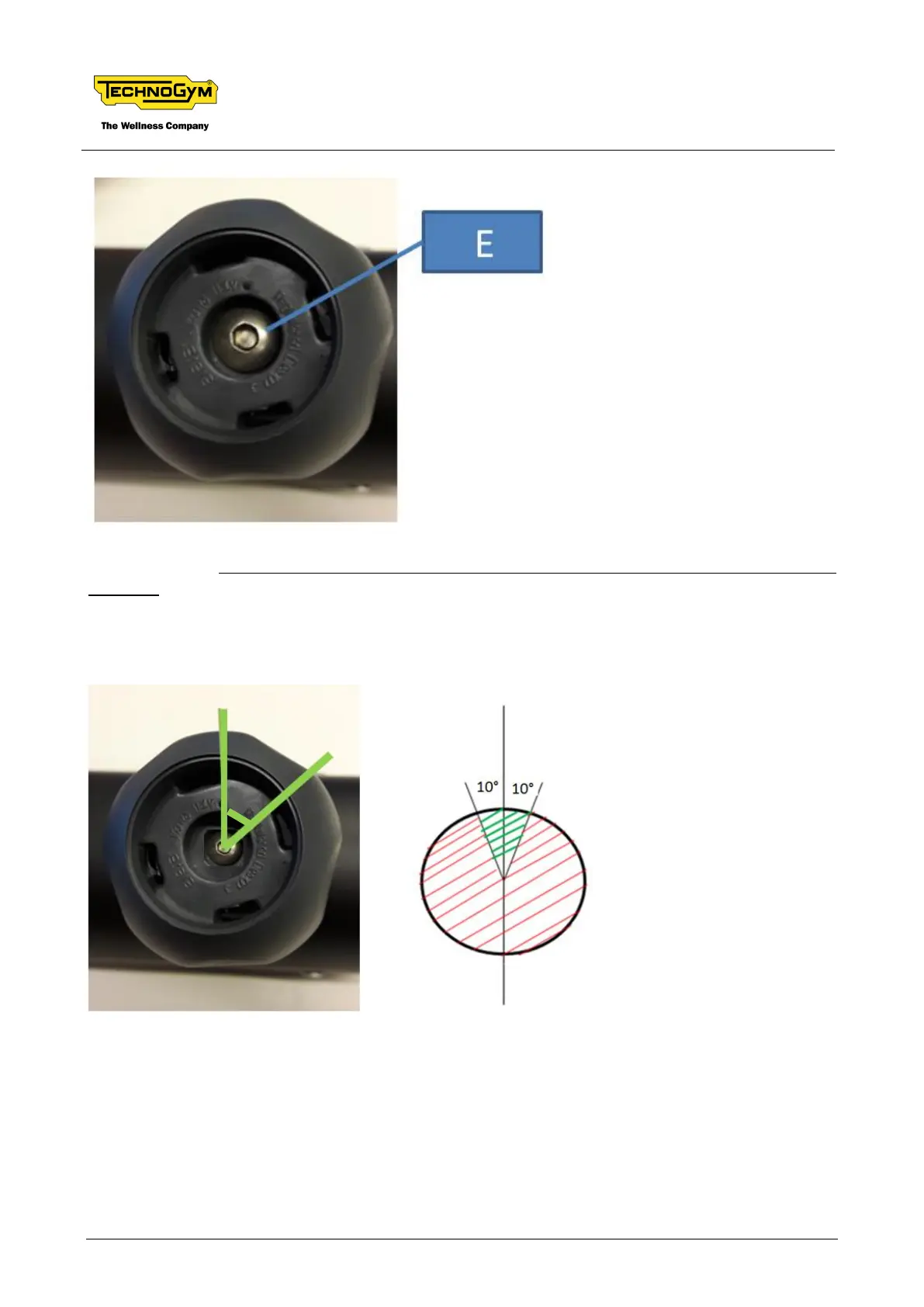

13-Pull the pin. The pin must be unblocked and must rotate of maximum 10 degrees in either
direction.
NOTE: if you turn the knob, the rotation must be within the angle highlighted in figure below, in
correspondence of the two sections.
