SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 14.11
14-Reassembly the bench.
15-Install the yellow selector knob cap.
16-Repeat the functional test:
ATTENTION: THE BACKREST COULD FALL DOWN.
- If you lift up the backrest: the pin must move free. The backrest position must be blocked in
correspondence of each selected hole/position.
- If you pull the pin: the backrest must move down and be blocked in correspondence of each
selected hole/position.

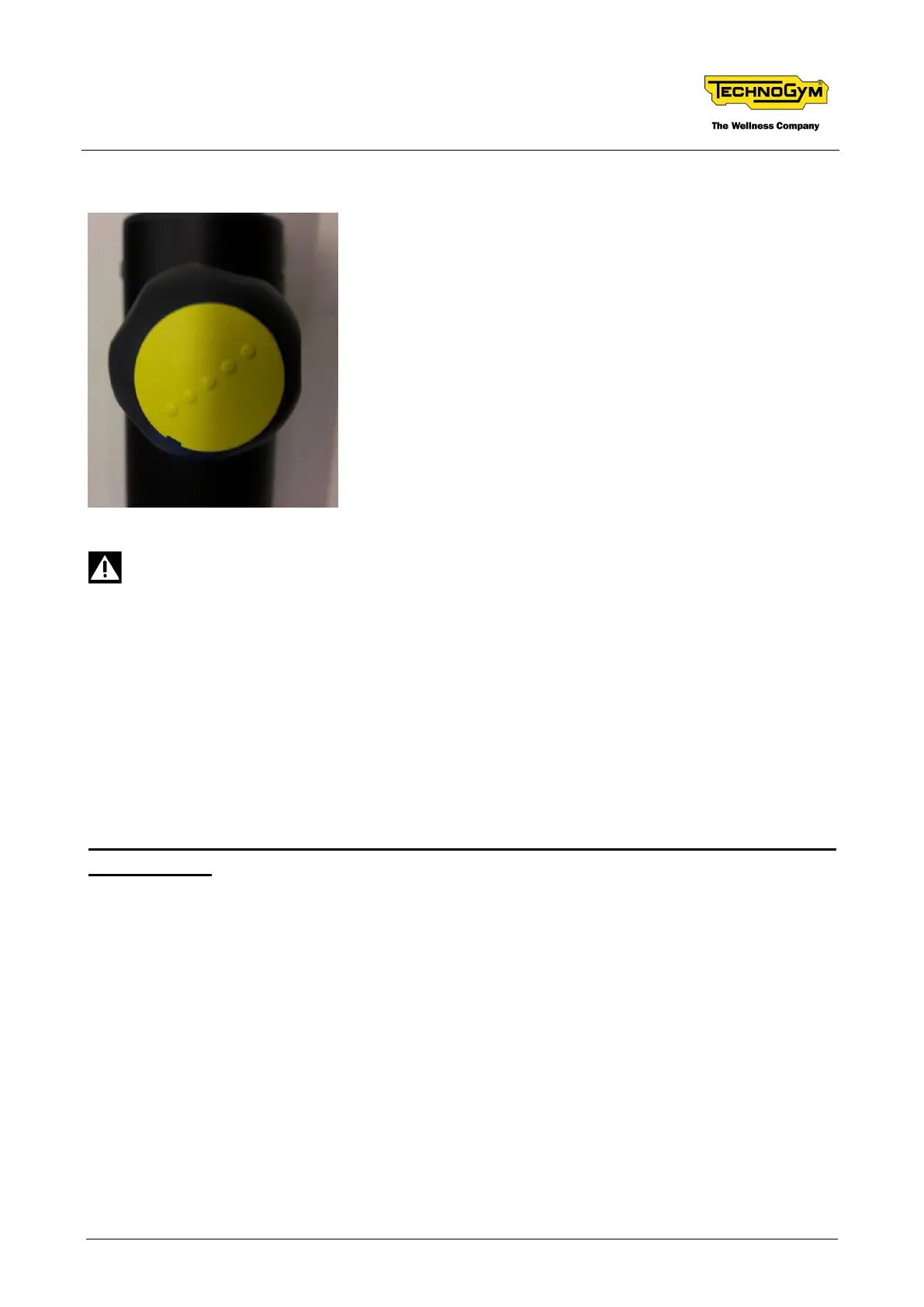

- If you tilt the backrest of 30 degrees, selecting the correct position 30° and then you try to turn the
knob clockwise and counterclockwise (see figure below): The knob must rotate within 10 degrees
and the backrest must not fall down.
ATTENTION: DO NOT USE THE BENCH FOR 24 HOURS. Leave a warning
on the bench.
