SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 3.49

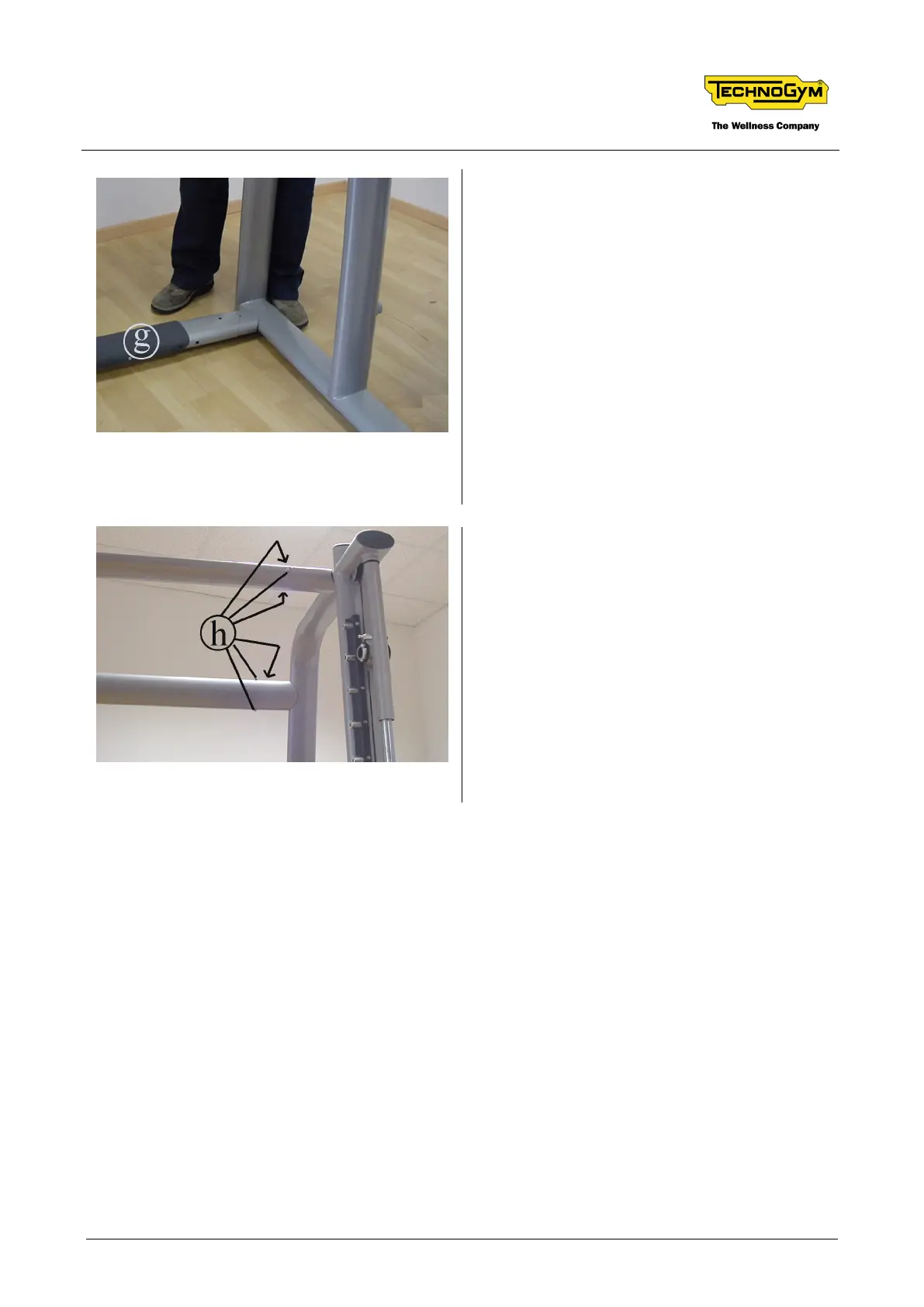

Photo 3.3-22
10. Insert the crossbar d on the connecting posts,
with the footrest guard g on the upper part, as
shown in the figure.
11. Lock down the assembly using the screws
removed previously: one on the top part and
two on the sides.
Continued on the following page 
Photo 3.3-23
12. Repeat the operations of steps 10 and 11 for
the two upper crossbars e, inserting them in
such a way that the holes for the fixing
screws h on the crossbars and frame match
up.
