SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 3.52

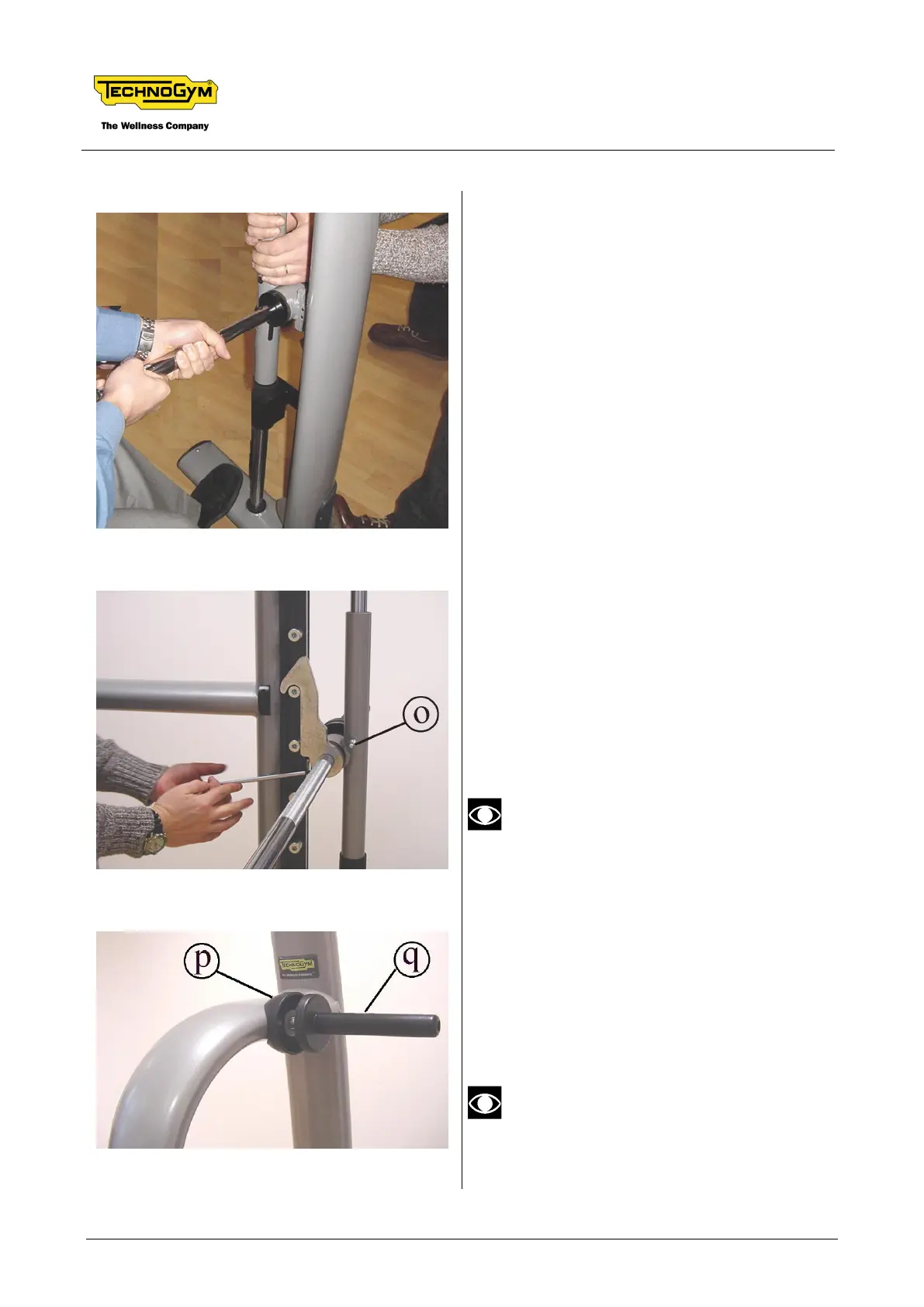

24. In order to insert the pins it may be necessary
to force the guides inward to align the holes
on the spacers with those on the barbell, if
necessary using a 6-mm pointed tool, on the
side opposite the pin, to keep the holes in
alignment.
25. Use a hammer to push the pins in.
26. Engage the two hook catches on their
respective pins on the frame and release the
barbell, so that they come to rest in the
correct position.
27. Lock down the two screws using a 6-mm
Allen wrench and the two grub screws using
a 4-mm Allen wrench.
If necessary, remove the stops "o" with
a 14-mm wrench, to more easily access
the fixing screws of the hooks.
28. Complete assembly of the Multi Power by
assembling the 8 weight plate storage posts
supplied with the machine on the outer part
of the frame. Lock down component q on the
frame after having first inserted component
p.
Screw the weight plate posts in by hand,
without using a wrench, because
otherwise the plastic may break.
