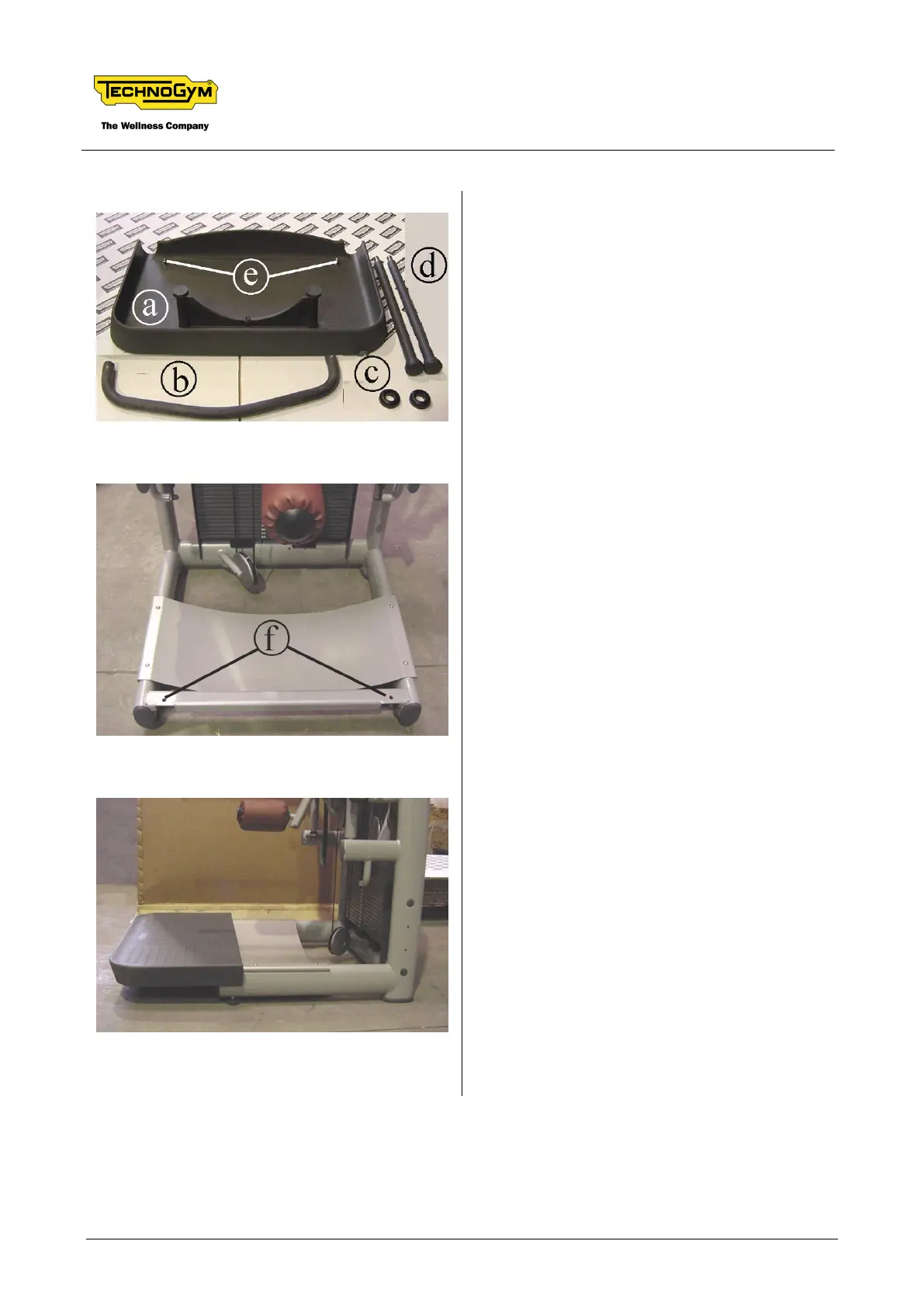

Photo 3.3-33
4. This photo shows the parts that need to be
assembled upon delivery:
 the platform a:
 the centre handlebar b;
 the two side handlebars d and their
plastic bushings c.
Photo 3.3-34
5. Position the machine on the floor.
6. Back off the two nuts e from the platform
(see Photo 3.3-33) and insert the two screws
in the holes f on the frame.
Photo 3.3-35
7. Lock down the nuts e using a 17-mm wrench,
accessing them from below.
Continued on the following page 
