SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Page 3.63

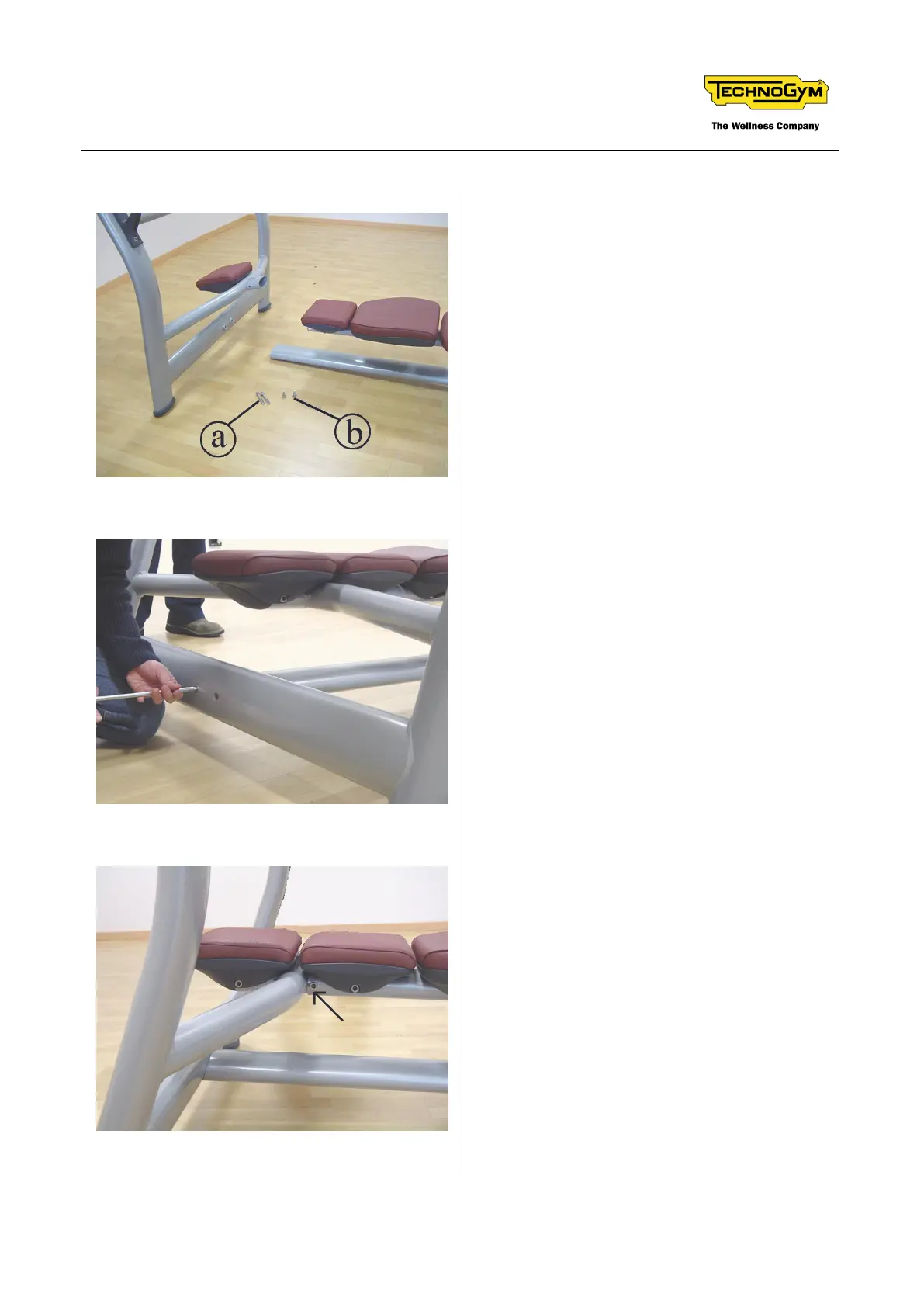

Photo 3.3-53
4. The carton which contains the front part of
the bench also includes the fixing screws a
and b.
5. Place the two parts on the ground and join
them by means of the posts on the frame.
Photo 3.3-54
6. Use an 8-mm Allen wrench and the two
screws a shown in Photo 3.3-53, to connect
the bottom of the two parts, as shown in the
figure.
Photo 3.3-55
7. Use the screws b shown in Photo 3.3-53, to
fix the top part of the bench as indicated by
the arrow in the figure.
