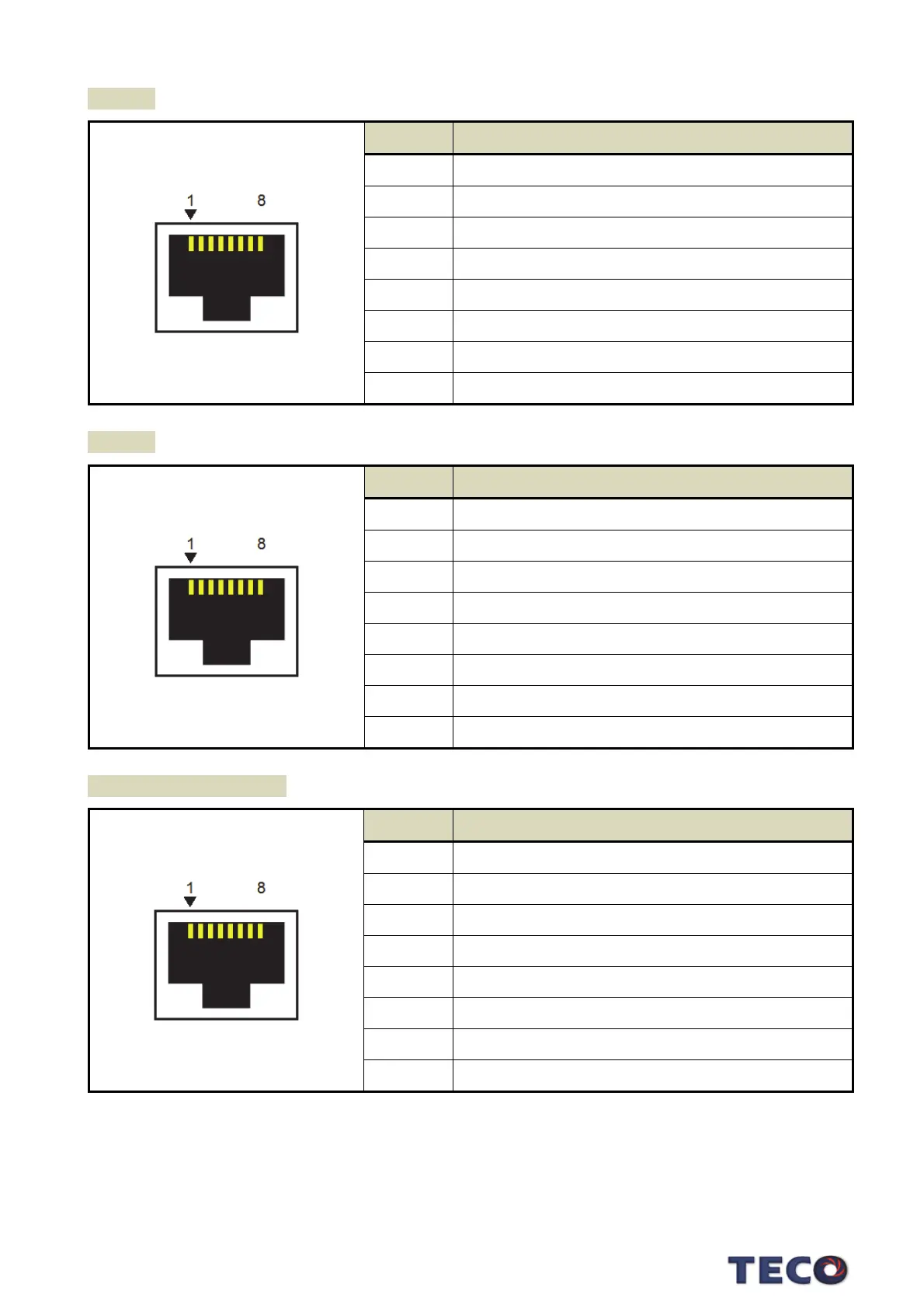

CN5/CN6 Terminal configuration diagram (CANopen communication):

Pin Name

1 CAN_H

2 CAN_L

3 GND

4 -

5 -

6 -

7 GND

8 -

JSDG2S

CN5/CN6Terminal configuration diagram (RS-485 communication):

Pin Name

1 -

2 -

3 GND

D+

D-

6 -

7 GND

8 -

JSDG2S-E / JSDG2S-EL

CN5/CN6Terminal configuration diagram (EtherCAT communication):

Pin Name

1 TX+

2 TX-

3 RX+

4 -

5 -

6 RX-

7 -

8 -
