Options and
Accessories-2230
Operators
Table 7-3
Specific Format Choices
Option 10 GPIB Side Panel
The Option 10 instrument
is
supplied with the side
panels shown
in
Figure 7-1. The Option 10 side panel
includes one AUXILIARY connector, one GPIB (IEEE 488-
1978) interface port,
and
one PARAMETERS switch. The
Controls, Connectors,
and
Indicators part of this manual
contains information
on
the use of the AUXILIARY Con-
nector. Refer to Figure
7-1
for location
of
the Option 10
side-panel controls
and
connectors.
Format Parameter
Format Characters
Message Terminator
Measurement Terminator
Link Data (Arguments)
Multiple Event Reporting
Instrument Identification
Query
Set Query
Device Trigger
(DT)
INIT Command
Time/Date Commands
Stored Setting Commands
Waveform Transmission
Return to Local (rtl)
IEEE
728
Feature
Secondary Addressing
Indicators
Parameter Selection
Choice Made
Not transmitted; ignored
on
reception.
Either
EOI
or LF can
be
selected for message
termination.
Follows program message-
unit syntax.
Used
in
Listen
and
Talk.
Not implemented to report
all
events
on
a single query.
Multiple events may be
reported by using multiple
queries.
Descriptors added for
all
options.
Extended
by
using other
commands.
Not implemented.
Causes the instrument to
return to a default set up
condition.
Not implemented.
Not implemented.
Implemented.
AUXILIARY
CONNECTOR
CD
CAUTION
PARAMETERS
SWITCH
PARAMETERSL®
a::o/2@J
a::o
2
ADDR
CC0
4
a::o
8
CCD
16
EDI
CC0
LfOREOI
CCD
LON
CCD
TON
CCD
AUX
1
CCD
AUX
2
z 1
CD
::25Vpk
AND<100mA
ABS.
MAX
APPLIED
TO
ANY
CONNECTOR
IEEE
STD
488
PORT
SHl.
AHl.
T5,
L3,
SRl,
RL2,
PPZ.
DCl.
DTZ.
CZ,
E2
GPIB
CONNECTOR
6530-26
Not implemented.
Compliance not intended.

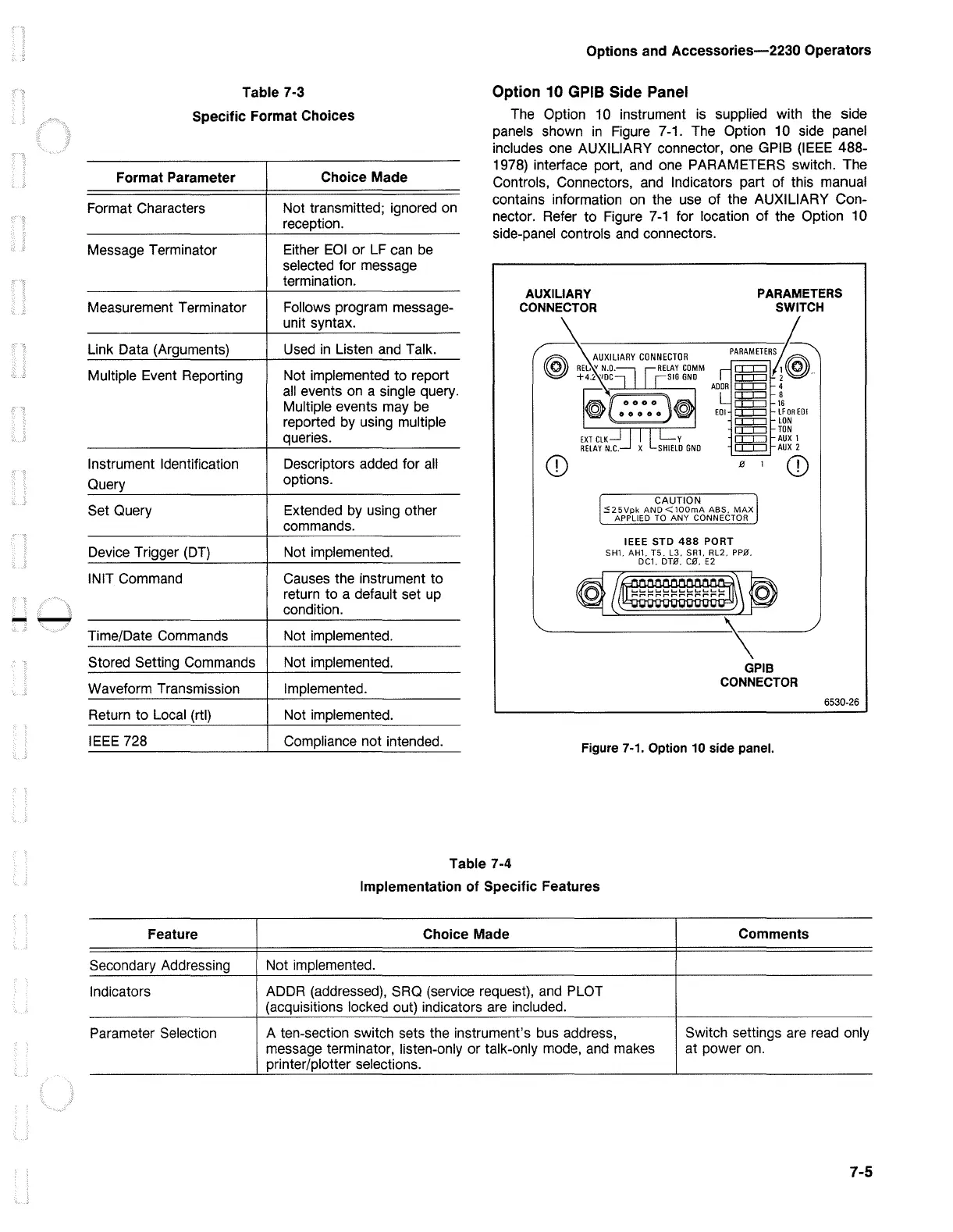

Figure 7-1. Option 10 side panel.
Table 7-4
Implementation of Specific Features
Choice Made
Not implemented.
ADDR (addressed), SRO (service request), and PLOT
(acquisitions locked out) indicators are included.
A ten-section switch sets the instrument's bus address,
message terminator, listen-only or talk-only mode,
and
makes
printer/plotter selections.
Comments
Switch settings are read only
at power
on.
7-5
