Tektronix DPO4000 Series User Manual

Trigger Setup and Run
Trigger Coupling
Trigger coupling determines what part of the
signal is passed to the trigger circuit. Edge
triggering can use all available coupling types:
DC, Low Frequency Rejection, High Frequency
Rejection, a nd Noise Rejection. All other
trigger types use DC coupling only.

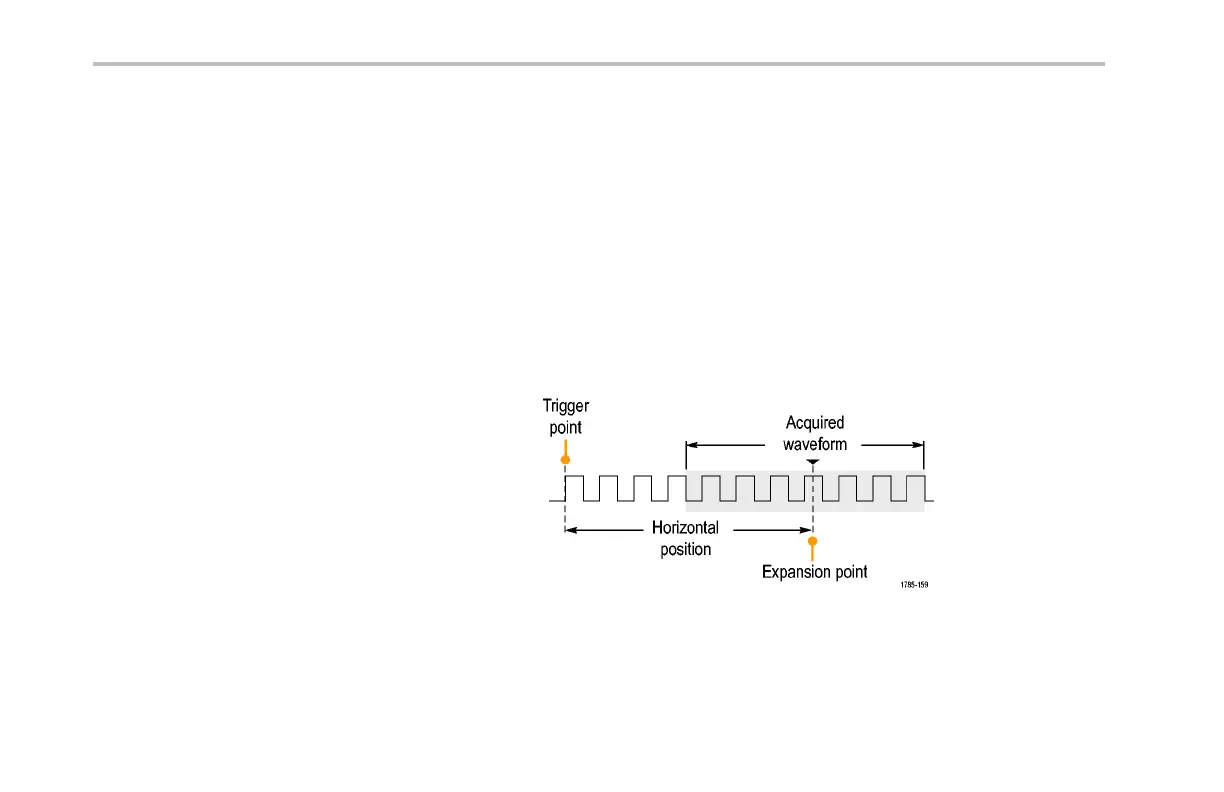

Horizontal Position
Usehorizontalpositiontoacquirewaveform
detail in a region th at is separated from the
trigger location by a significant interval of time.
94 DPO4000 Series User Manual
