Tektronix DPO4000 Series User Manual

Analyze Waveform Data
Managing Long Record Length Waveforms
The DPO4000 Series Wave Inspector controls (zoom/pan, play/pause, marks, search) help you to efficiently work with long
record length waveforms. To magnify a wavefo rm horizontally, rotate the Zoom knob. To scroll through a zoomed waveform,
rotate the Pa n knob.

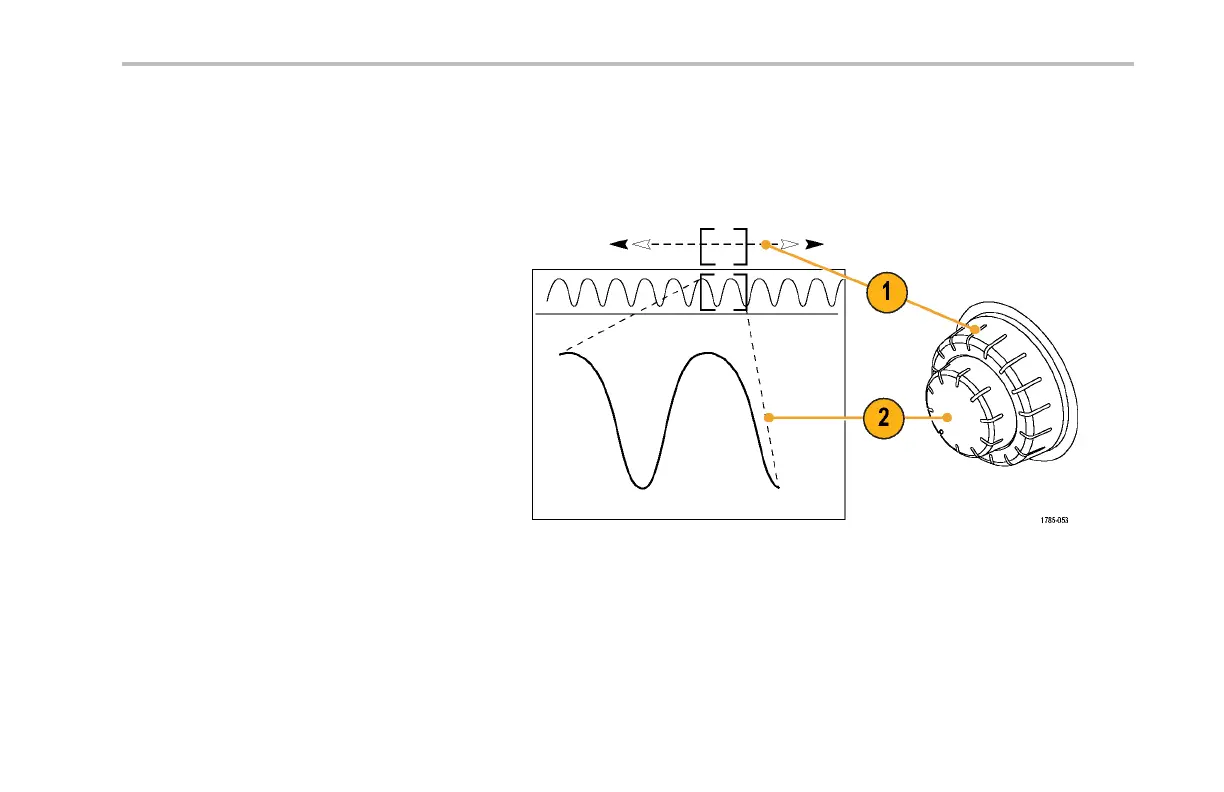

The Pan-Zoom Control consists of:
1. An outer pan knob
2. An inner zoom kno b
DPO4000 Series User Manual 163
