Trigger Setup and Ru n
Checking Trigger S tatus
To quickly determine the settings of some key
trigger parameters, check the Trigger readout
at th e bottom of the display. The readouts differ
for edge and the advanced triggers.

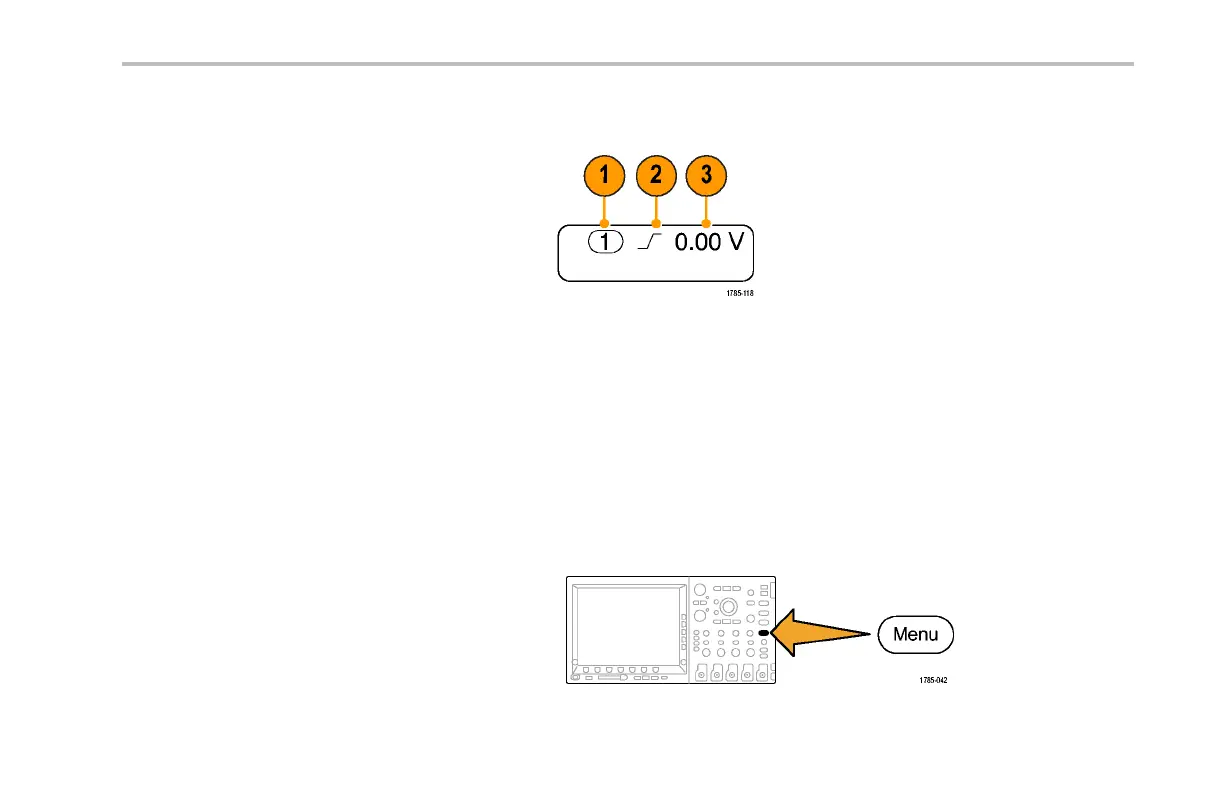

1. Trigger source = cha nnel 1.
2. Trigger slope = rising.
3. Trigger level = 0.00 V.
Edge trigger readout
Using A (Main) and B (Delayed) Triggers
Combine an edge A Event (Main) trigger with the B Event (Delayed) trigger to capture more complex signals. After the A Event
occurs, the trigger system looks for the B Event before triggering and displaying the waveform.
To use the B trigger:
1. Push Trigger Menu.
DPO4000 Series User Manual 107
