Trigger Setup and Run
2. Press Type repeatedly to select a trigger type
of Edge.

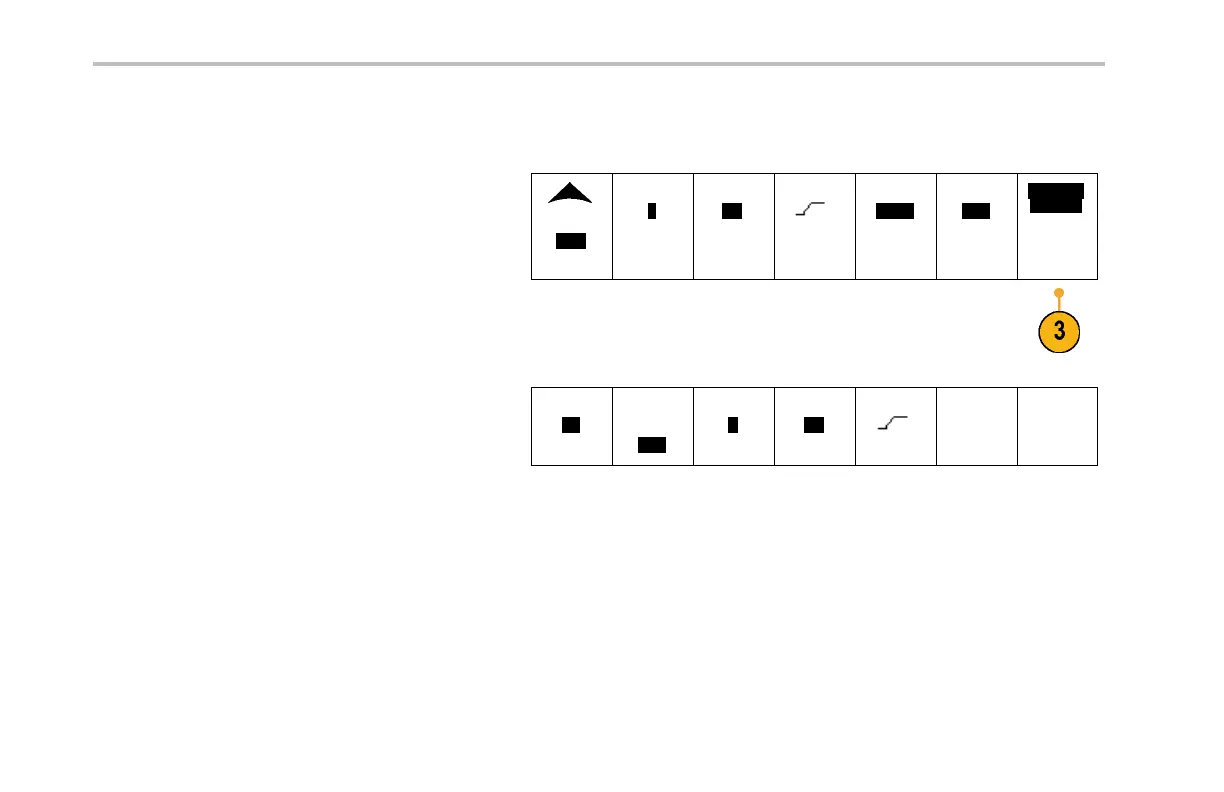

3. Push Configure B Trigger.Thisbringsupthe
B trigger menu.
The B Trigger Setup item only appears if the
A trigger is set to edge trigger.
Type
Edge
Source
1
Coupling
DC
Slope
Level
0.00 V
Mode
Auto
&Holdoff
Configure
B Trigger
4. Set the B trigger parameters as definedinthe
B trigger lowe r-bezel and side-beze l menu
items.
B Trigger
On
B Trigger
After A
Time
Source
1
Coupling
DC
Slope
Level
0.00V
Configure
A Trigger
108 DPO4000 Series User Manual
