Tektronix DPO4000 Series User Manual

Application E xamp les
Customizing Your Measurements

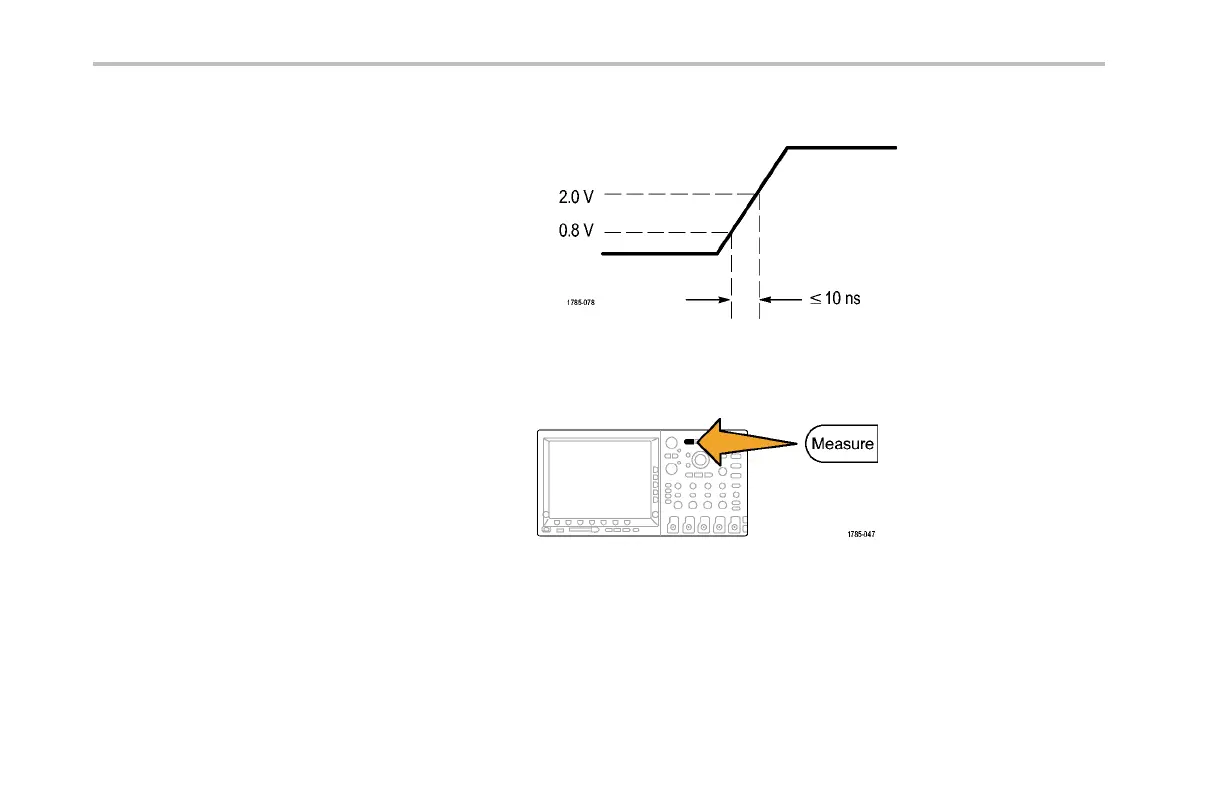

In th is example, you want to verify that the
incoming signal to digital equipment meets its
specifications. Specifically, the transition time
from a low logic level (0.8 V) to a high logic
level (2.0 V) must be 10 ns or less.
To select the rise tim e m easurement.
1. Push Measure.
210 DPO4000 Series User Manual
