Analyze Waveform Data
Customizing an Automatic Measurement
You can customize automatic measurements by using gating, modifying measuremen t statistics, adjusting the m easu rement
reference levels, or taking a snapshot.
Gating
Gating confines the measurement to a ce rtain portion of a waveform. To use:

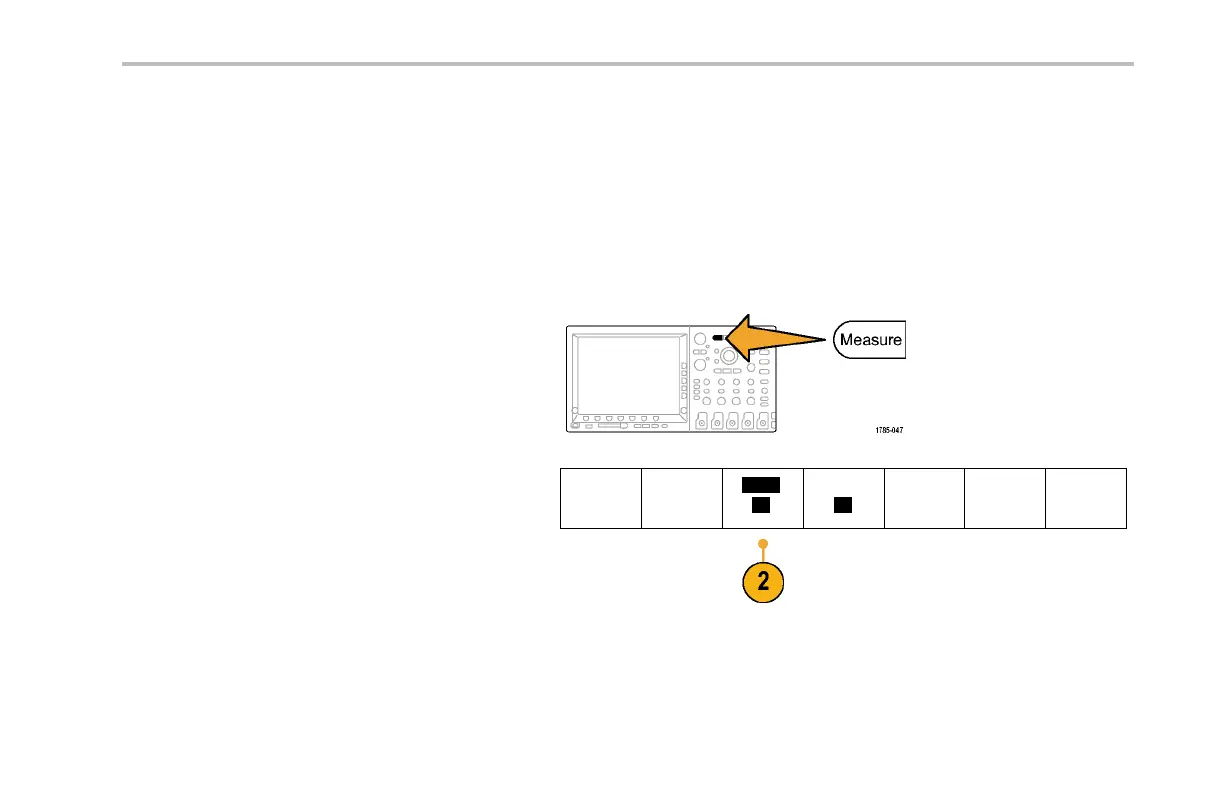

1. Push Measure.
2. Push Gating.
Select
Measure-
ment
Remove
Measure-
ment
Gating
Off
Statistics
Off
Reference
Levels
Indicators
Configure
Cursors
DPO4000 Series User Manual 137
