Application Examples

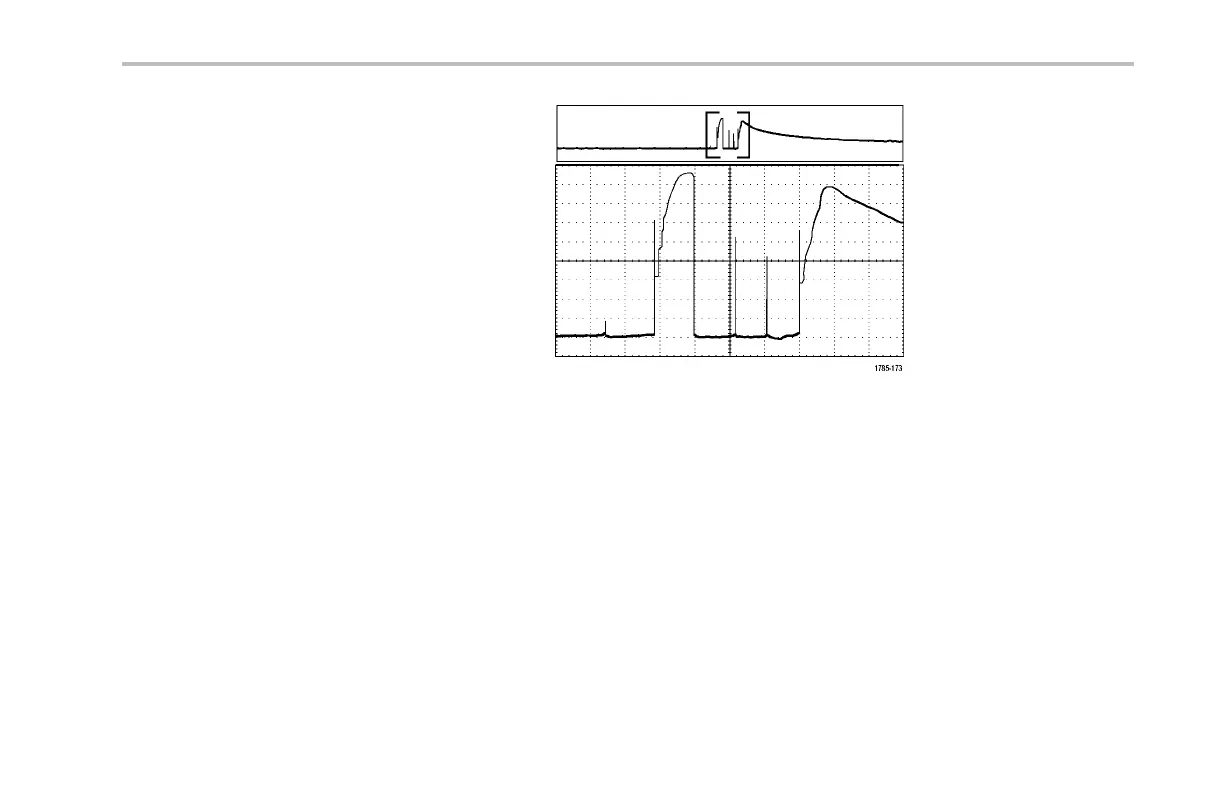

The ragged w aveform and the inductive load in
the circuit suggest that the relay contact may
be arcing as it op ens.
The zoom function works equally well when the acquisition is runn ing or is stopped. Horizontal position and scale changes
affect only the display, not the next acquisition.
Correlating Data With a TLA5000 Logic Analyzer
To troubleshoot designs with fast clock edges and data rates, it helps to view analog characteristics of digital signals in relation to
complex digital events in the circuit. You can do that with iView, which lets you transfer analog waveforms from the oscilloscope
to the logic analyzer display. You can then view tim e-correlated analog and digital signals side-by-side and use this to pinpoint
sources of glitches and other problems.
DPO4000 Series User Manual 235
