Tektronix DPO4000 Series User Manual

Trigger Setup and Ru n

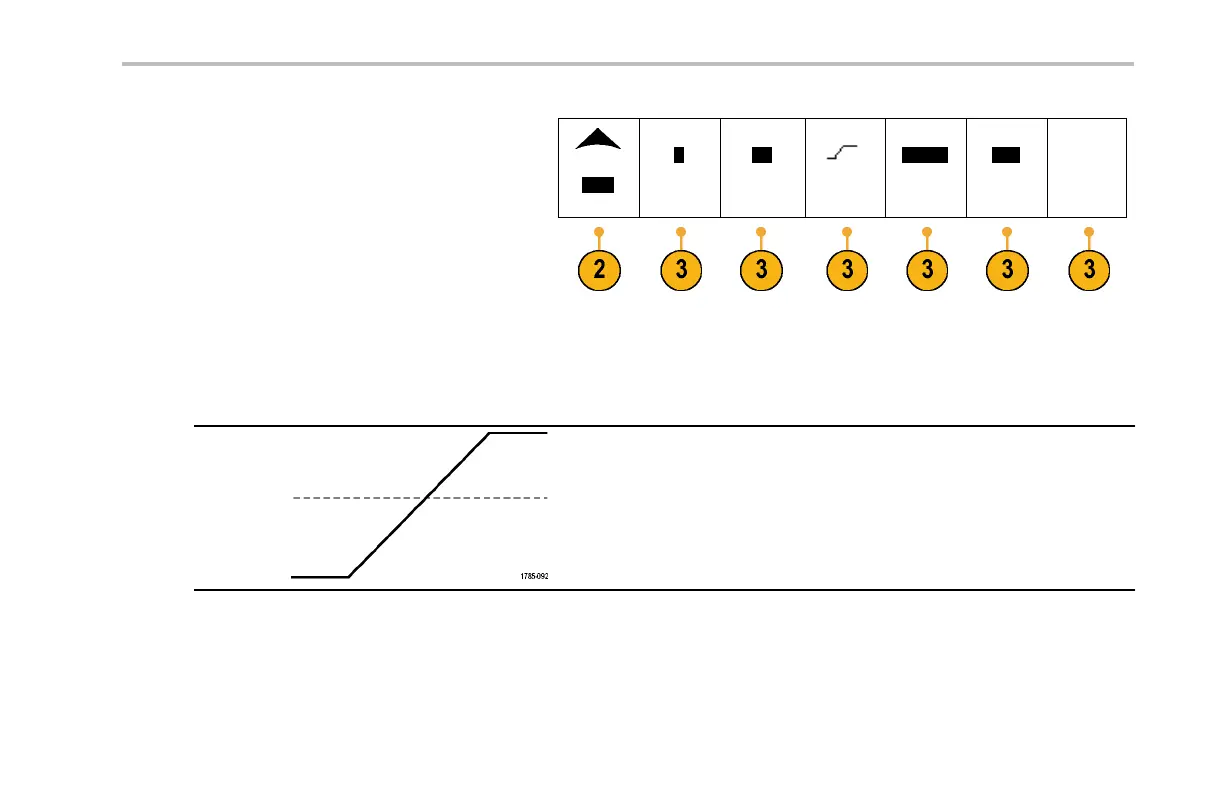

3. Complete the trigger setup using the
lower-bezel menu controls displayed for the
trigger type. The controls to set up the trigger
vary depending on the trigger type.
Type
Edge
Source
1
Coupling
DC
Slope
Level
100 mV
Mode
Auto
&Holdoff
Configure
B Trigger
Selecting Triggers
Trigger Typ e Trigger Conditions
Edge
Trigger on a rising or falling edge, as defined by the slope control.
Coupling choices are DC, LF Reject, HF Reject, and Noise Reject.
Edge triggers are the simplest and most commonly used trigger
type, with both analog and digital sign als. An edge trigger event
occurs when the trigger source passes through a specified voltage
level in the specified direction.
DPO4000 Series User Manual 99
