Trigger Setup and Run

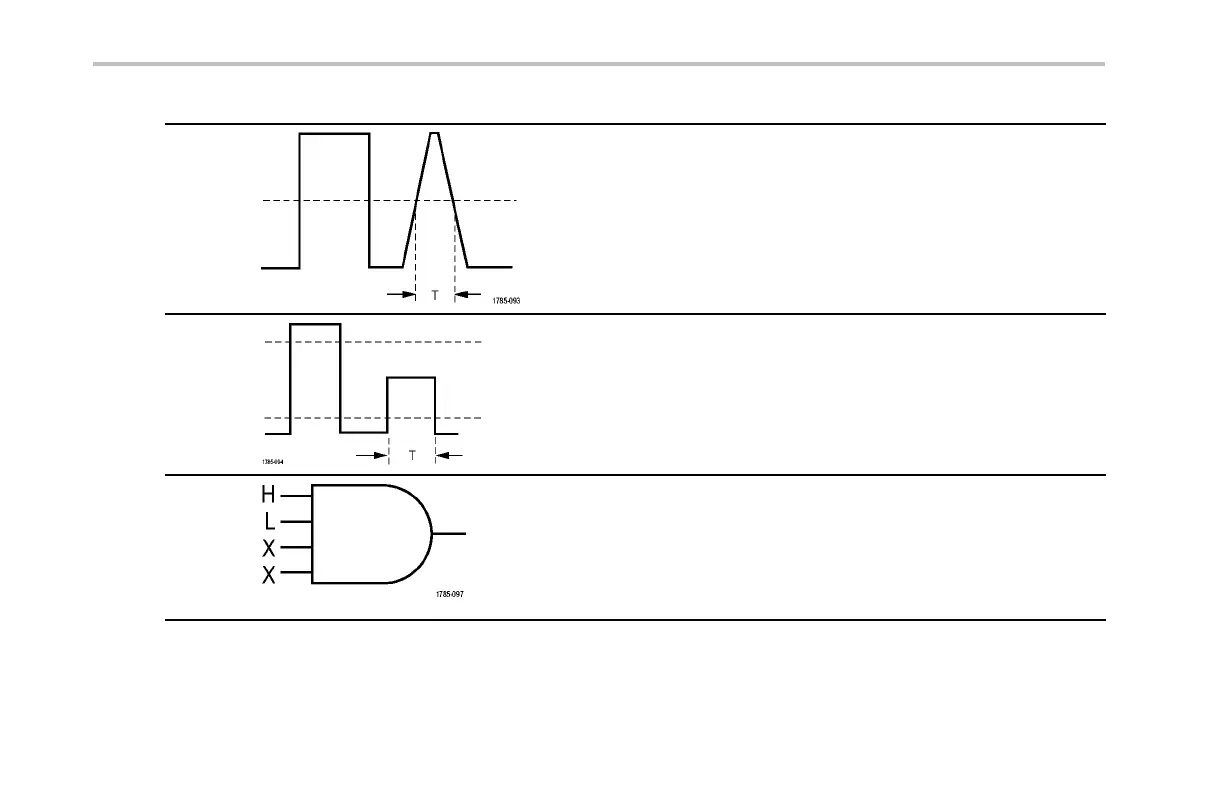

Trigger Type Trigger Conditions
Pulse/Width
Trigger on pulses that are less than, g reater than, equal to, or not
equal to a specified time. You can trigger on positive or negative
pulses. Pulse/width triggers are primarily used on digital signals.
Runt
Trigger on a pulse amplitude that crosses one threshold but fails
to cross a second threshold before recrossing the first. You can
detect positive or negative (or either) runts, or only those wider
than, less than, greater than, equal to, or not equal to a specified
width. Runt triggers are primarily used on digital signals.
Logic Logic triggers are primarily used with digital signals. You can set
each input to high, low, or don’t care. In addition, you can use one
channel as a clock source set to either the rising or falling edge.
Trigger when logic inputs cause the selected function to become
True or False. You ca n also specify that the logic conditions be
satisfied for a specific amount of time before triggering.
100 DPO4000 Series User Manual
