Analyze Waveform Data

After having properly set up the acquisition, triggering, and display of your desired waveform, you can then analyze the results.

Select from features such as cursors, automat ic measurement s, statistics, math, and FFT.

Taking Automatic Measurements

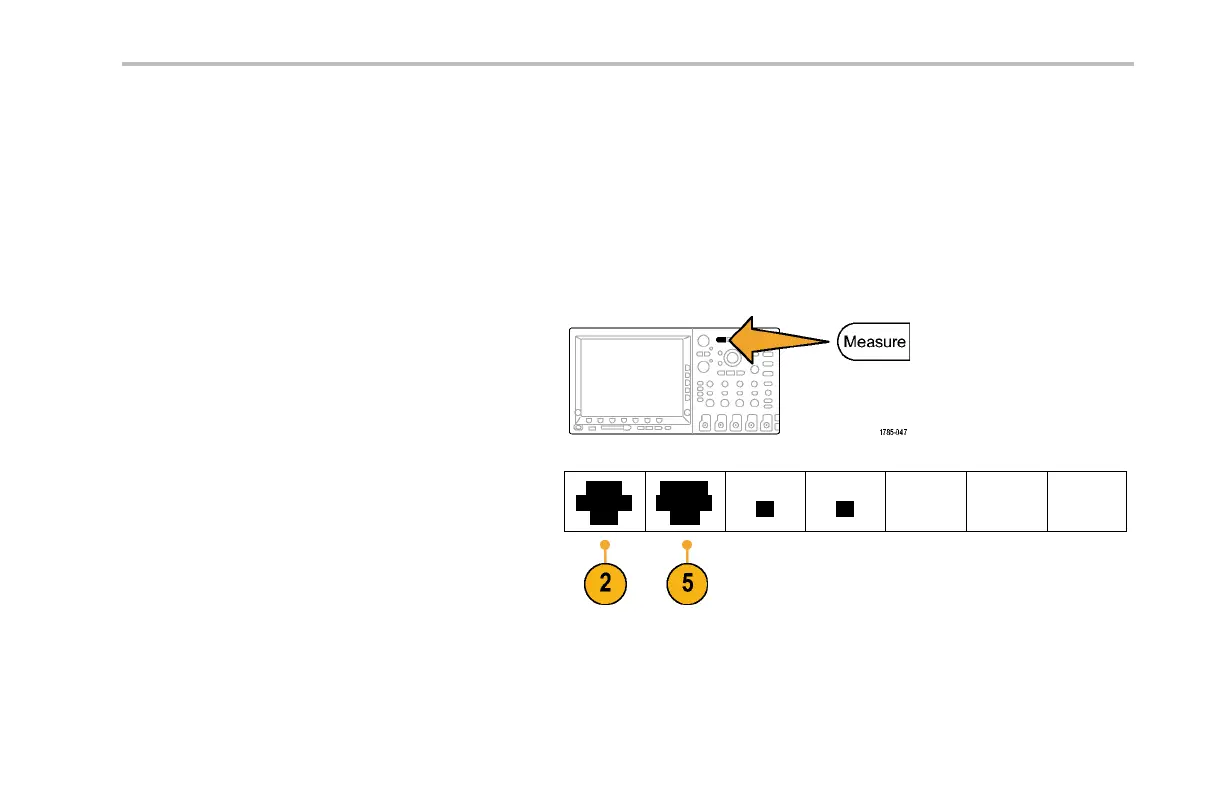

To take an automatic measurement:

1. Push Measure.

2. Push Select Measurement.

Select

Measure-

ment

Remove

Measure-

ment

Gating

Off

Statistics

Off

Reference

Levels

Indicators

Conﬁgure

Cursors

DPO4000 Series User Manual 129
