Analyze Waveform Data

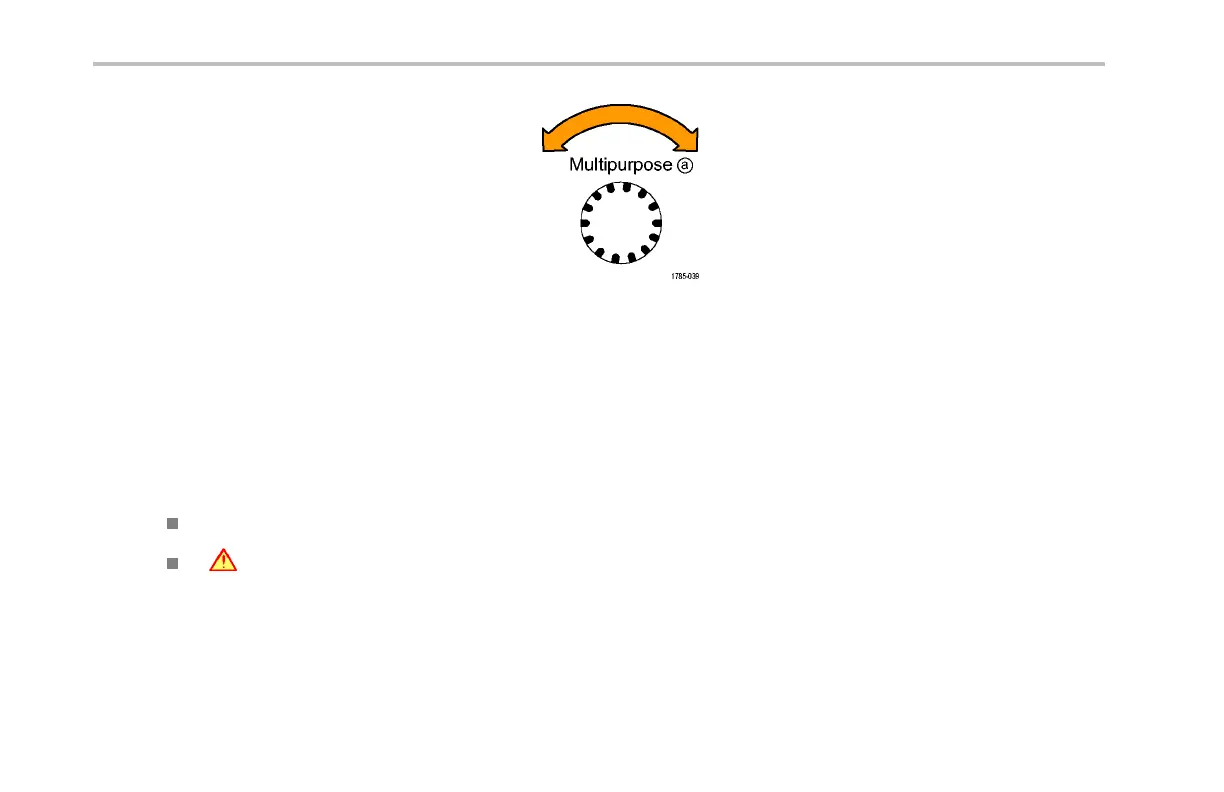

3. Turn multipurpose knob a to select the channel
from which you want to measure. This step is
only needed if you are acquiring data on more
than one channel.
4. Select the specific measurement or
measurements from the side-bezel menu.
5. To remove a measurement, push Remove
Measurement and the specific measurement
from the resulting side-bezel menu.
Quick Tips
To remo ve all m easure m ents, select Remove All.
A symbol appears instead of the expected numerical measurement if a vertical clipping condition exists. Part of the
waveform is a bove or below the display. To obtain a proper numerical measurement, turn the vertical scale and position
knobs to make all of the waveform appear in the display.
130 DPO4000 Series User Manual
