Acquire the Signal

This section describes concepts of and procedures for setting up the oscilloscope to acq uire the signal as you want it to.

Setting Up Signal Input

Use front-panel button s to set up your instrument to acquire the signal.

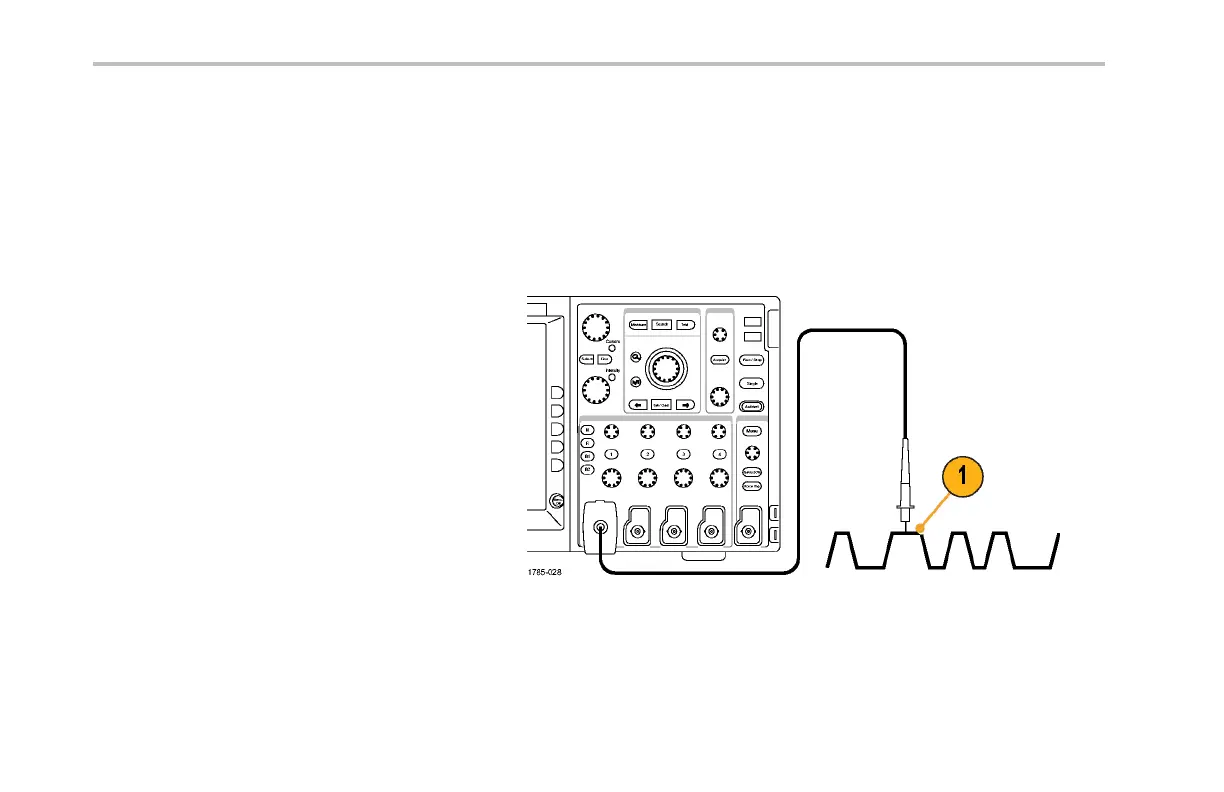

1. Connect the P6139A or VPI probe to the

input signal source.

70 DPO4000 Series User Manual
