Acquire the Signal

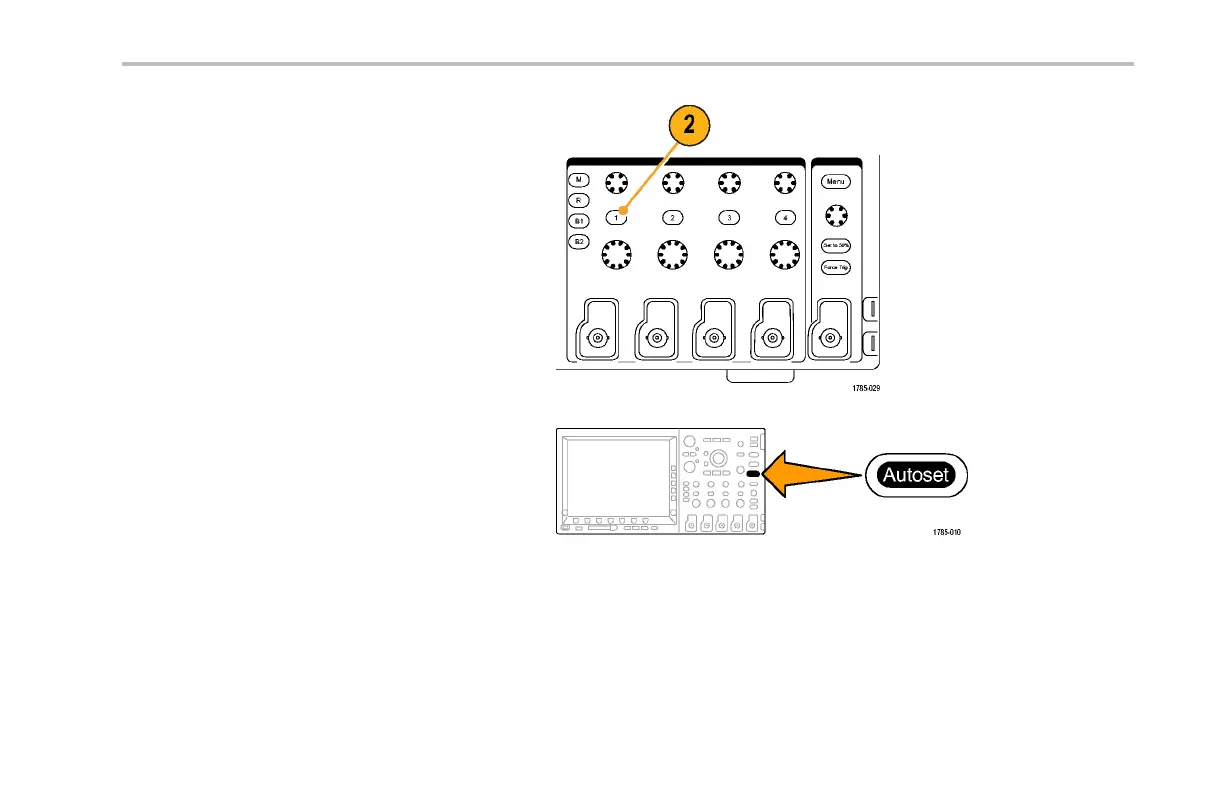

2. Select the input channel by pushing the
front-panel buttons.
NOTE. If you are using a probe that does not
supply probe encoding (not a P6139A nor a
VPI probe), set the attenuation (probe factor)
on the oscilloscope side-bezel menu.
3. Push Autose t.
DPO4000 Series User Manual 71
