Acquire the Signal

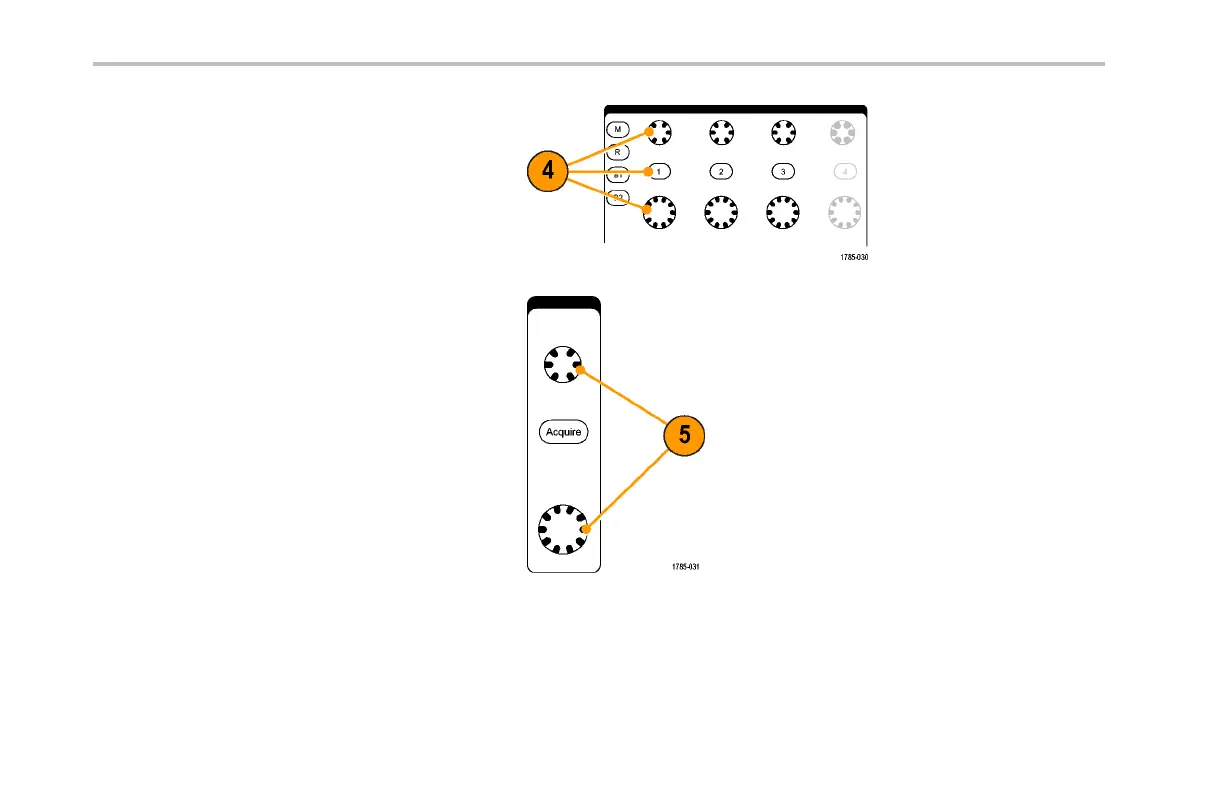

4. Push the desired channel button. Then
adjust the vertical position and scale.
5. Adjust the ho rizontal position and scale.
The horizontal position determines the
number of pretrigger and posttrigger
samples.
The horizontal scale determines the size
of the acquisition window relative to the
waveform. You can scale the window to
contain a waveform edge, a cycle, several
cycles, or thousands of cycles.
72 DPO4000 Series User Manual
