Acquire the Signal
Using Autoset
Autoset adjusts the instrument (acquisition, horizontal, trigger, and vertical controls) such that it displays two or three waveform
cycles with the trigger near the midlevel.

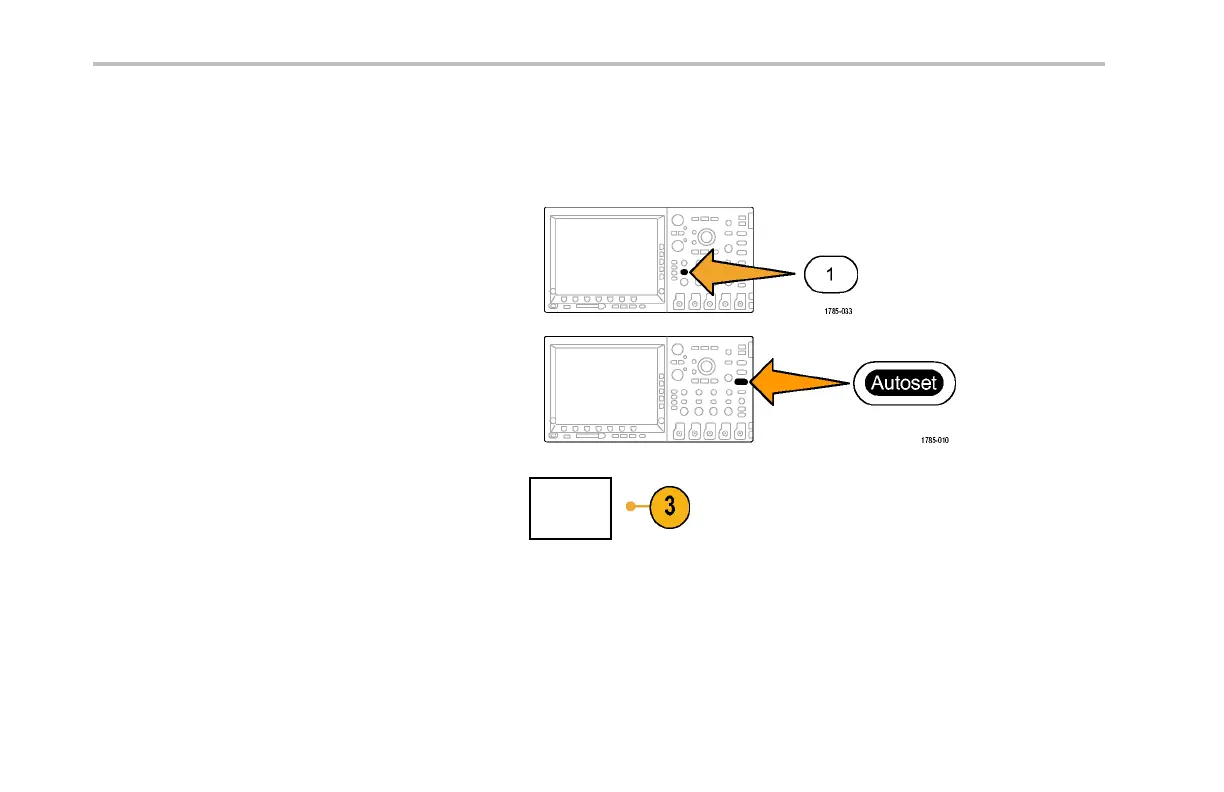

1. Connect the probe, and then select the input
channel. (See page 70, Setting Up Signal
Input.)
2. Push Autoset to execute an Autose t.
3. If desired, push Autoset Undo to undo the
last Autoset.
Undo
Autoset
