Analyze Waveform Data
Using Reference Waveforms
Create a reference waveform to store a wav eform. For e xample, you might do this to set up a standard against which to compare
other waveforms. To use the reference waveforms:

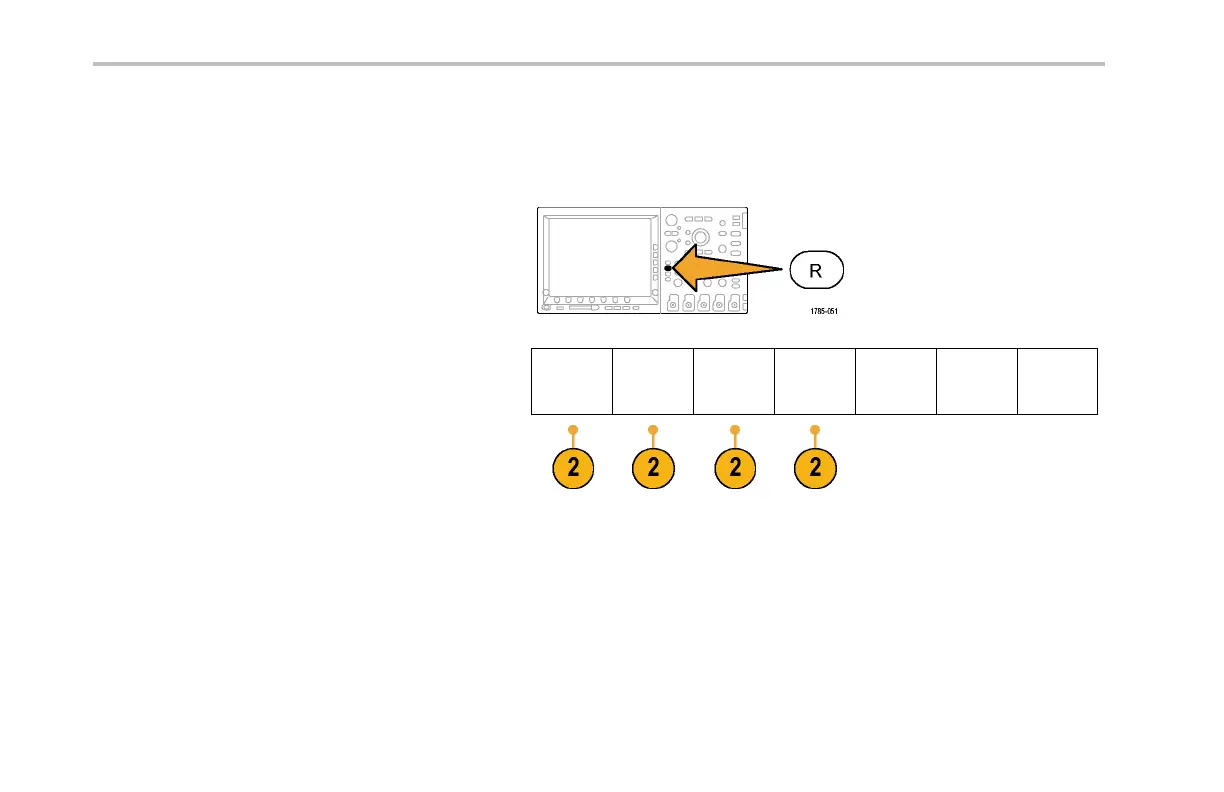

1. Push Ref R. This brings up th e lower-bezel
reference me nu.
2. Use the re sulting lower-bezel menu selections
to display or select a reference waveform.
R1(On)
25–Oct-
2006
R2(Off) R3(Off) R4(Off)
160 DPO4000 Series User Manual
