Analyze Waveform Data

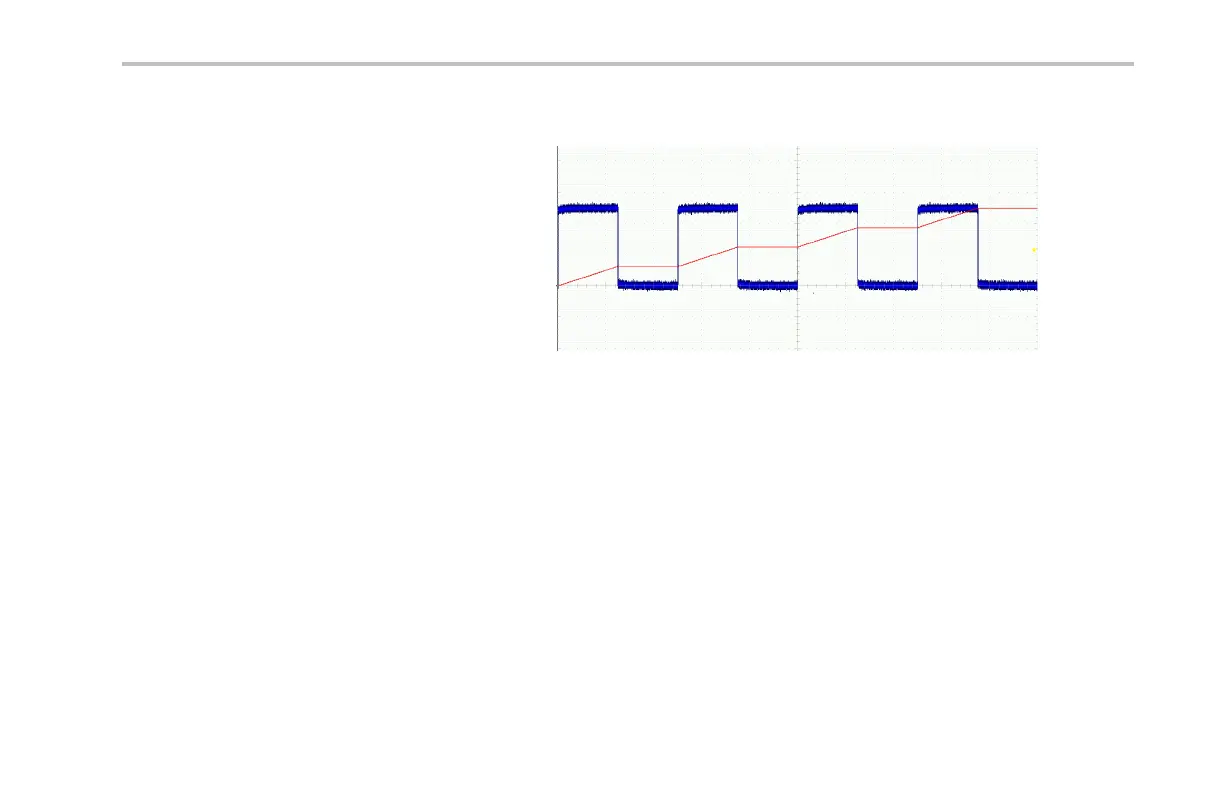

For example, to use Edit Expression to take the integral of a square wave:
1. Push the lower-bezel Clear button
2. Turn multipurpose knob a to select INTG(
3. Push Enter Selection
4. Turn multipurpose knob a to select
channel 1
5. Push Enter Selection
6. Turn multipurpose knob a to select )
7. Push OK Accept.
DPO4000 Series User Manual 159
