Display Waveform Data
Display Waveform Data
This section contains concepts and p rocedu res for displaying the acquired waveform.
Adding and Removing a Waveform

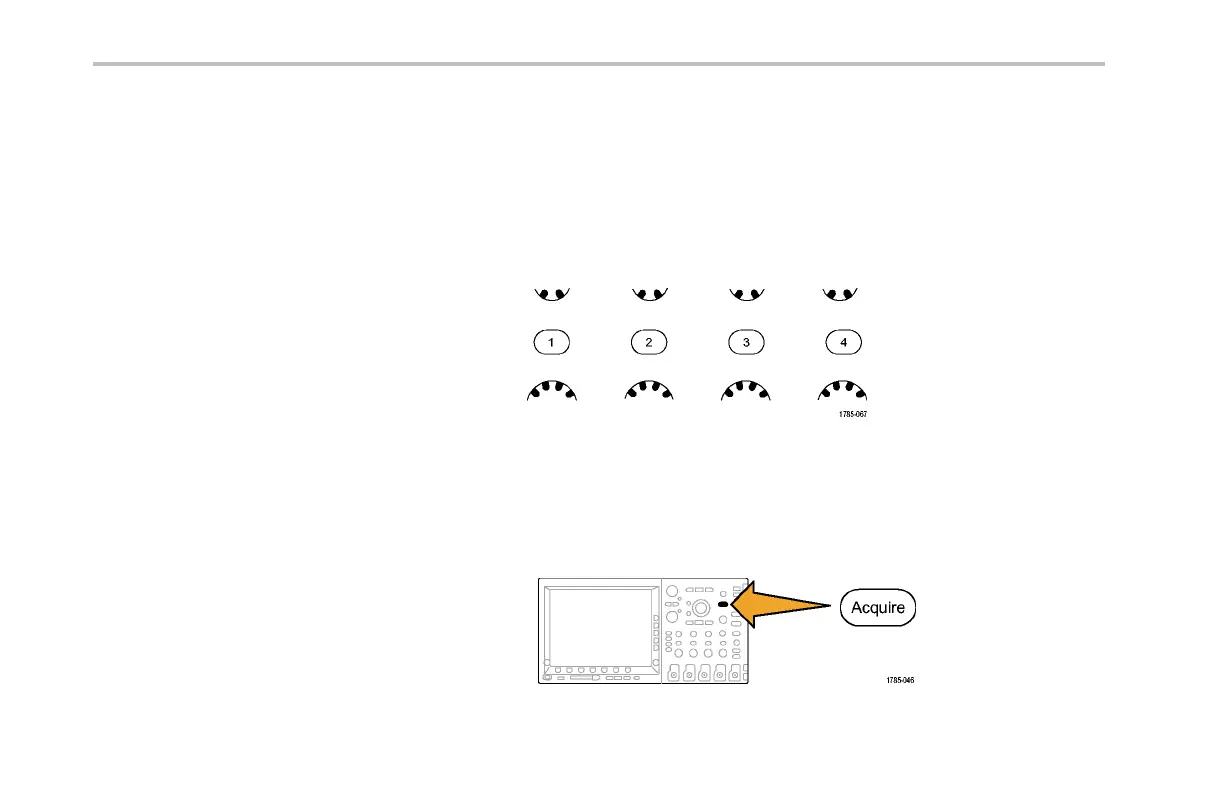

1. To add or remove an active waveform from
the display, push the relevant front-panel
channel b utton.
You can use the channel as a trigger
source whether or no t it is displayed.
Setting the Display Style and Persistence
1. To set the display style, pu sh Acquire.
112 DPO4000 Series User Manual
