Application Examples
Taking Cursor Measurements
You can use the cursors to take quick measurements on a waveform. To measure the ring frequency at the rising edge of the signa l:

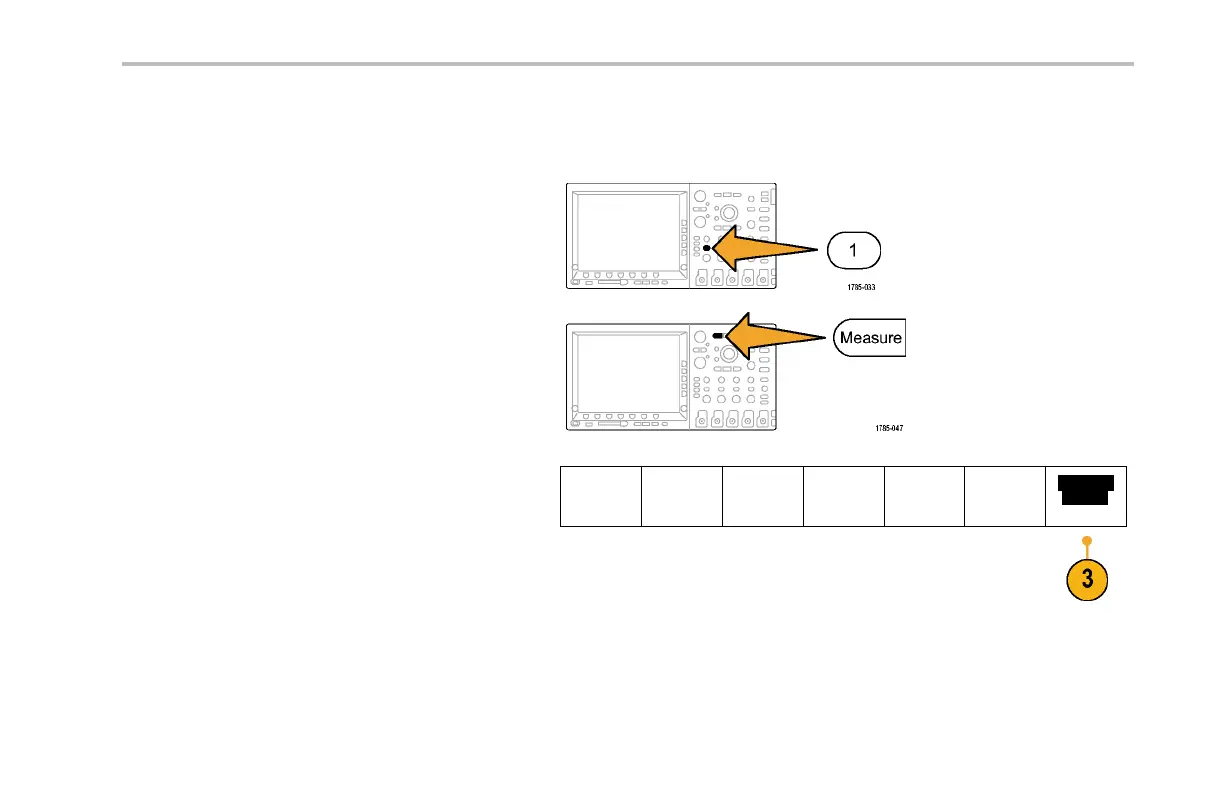

1. Push channel 1 to select the channel 1 signal.
2. Push Measure.
3. Push Configure Cursors.
Select
Measure-
ment
Remove
Measure-
ment
Gating Statistics Reference
Levels
Indicators
Configure
Cursors
DPO4000 Series User Manual 223
