Trigger Setup and Run
B Trigger After Delay Time

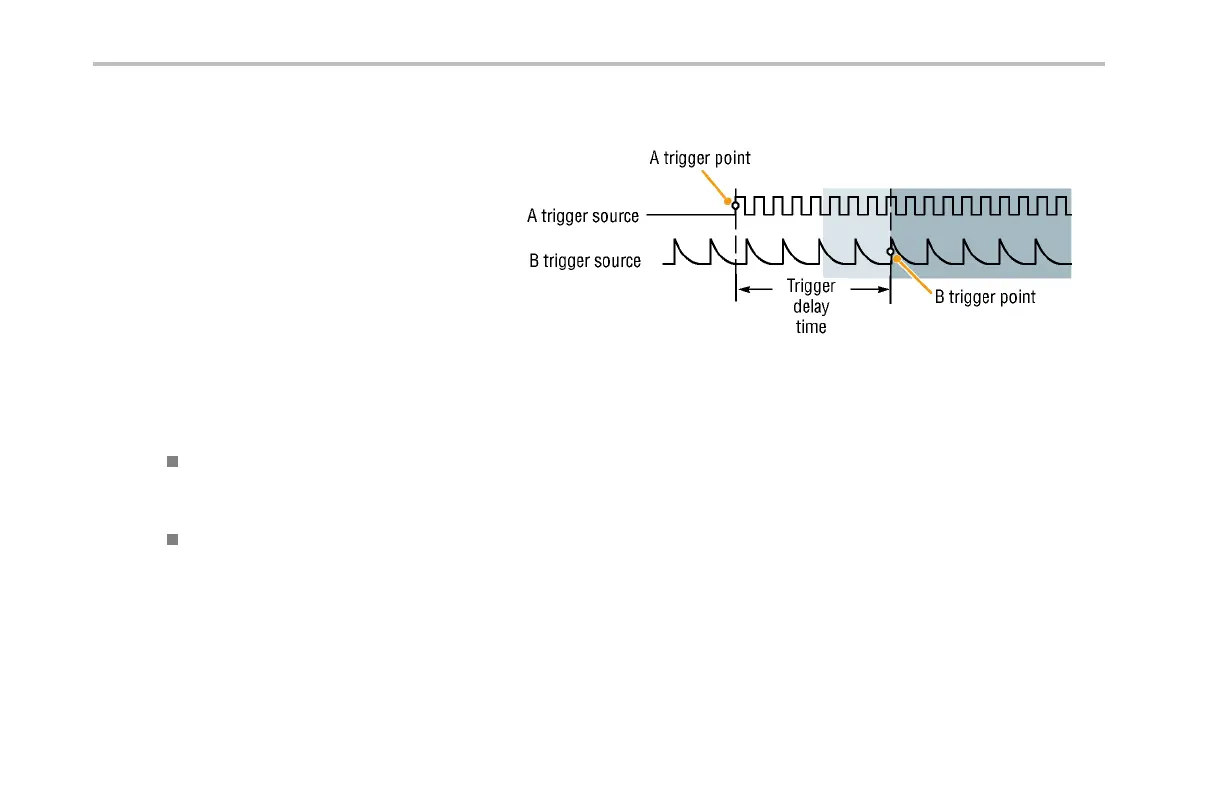

The A trigger arms the instrument. Posttrigger
acquisition starts on the first B edge after the
trigger delay time.
Quick Tips
B-trigger delay time and horizontal position are indepen dent functions. When you establish a trigger condition using either
the A trigger alone or the A and B triggers together, you can also use horizontal position to delay the acquisition by an
additional amount.
When using the B trigger, the A and B trigger types can only be Ed ge.
110 DPO4000 Series User Manual
