Tektronix DPO4000 Series User Manual

Analyze Waveform Data

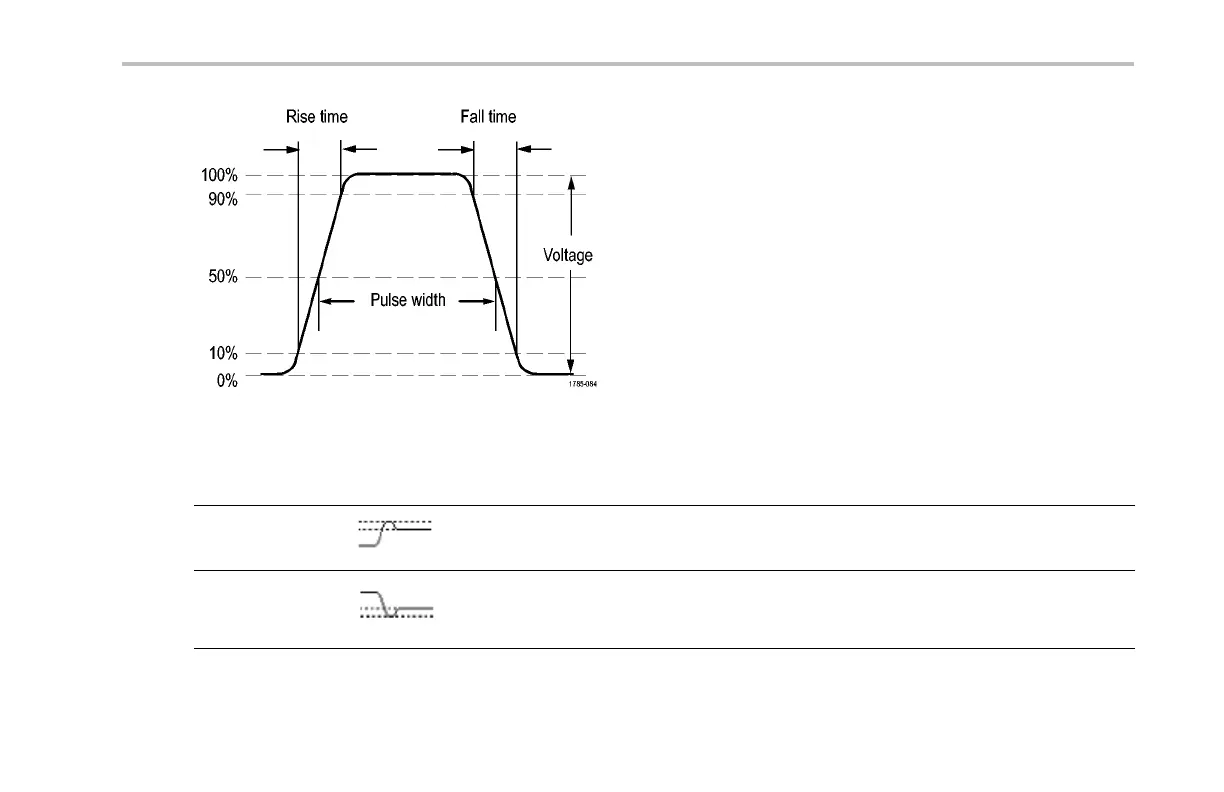

Amplitude Measurements
Measurement Description
Positive
Overshoot
This is measured over the entire waveform or gated region and is expressed as:
Positive Overshoot = (Maximum – High) / Amplitude x 100%.
Negative
Overshoot
This is measured over the entire waveform or gated region and is expressed as:
Negative Overshoot = (Low – Minimum) / Amplitude x 100%.
DPO4000 Series User Manual 133
