Analyze Waveform Data
Reference Levels
Reference levels determine how time-re lated
measurements are taken. For example, they are
used in calculating rise and fall times.

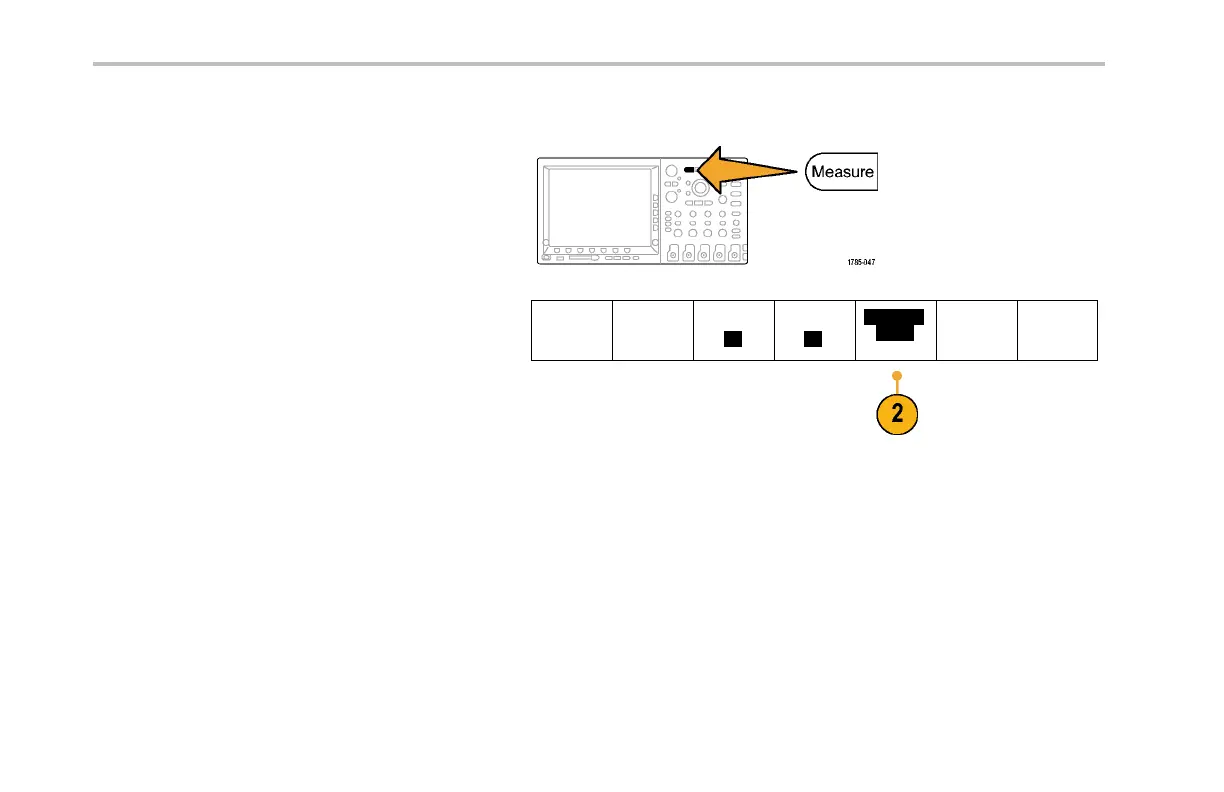

1. Push Measure.
2. Push Reference Levels.
Select
Measure-
ment
Remove
Measure-
ment
Gating
Off
Statistics
Off
Reference
Levels
Indicators
Configure
Cursors
142 DPO4000 Series User Manual
