Application E xamp les

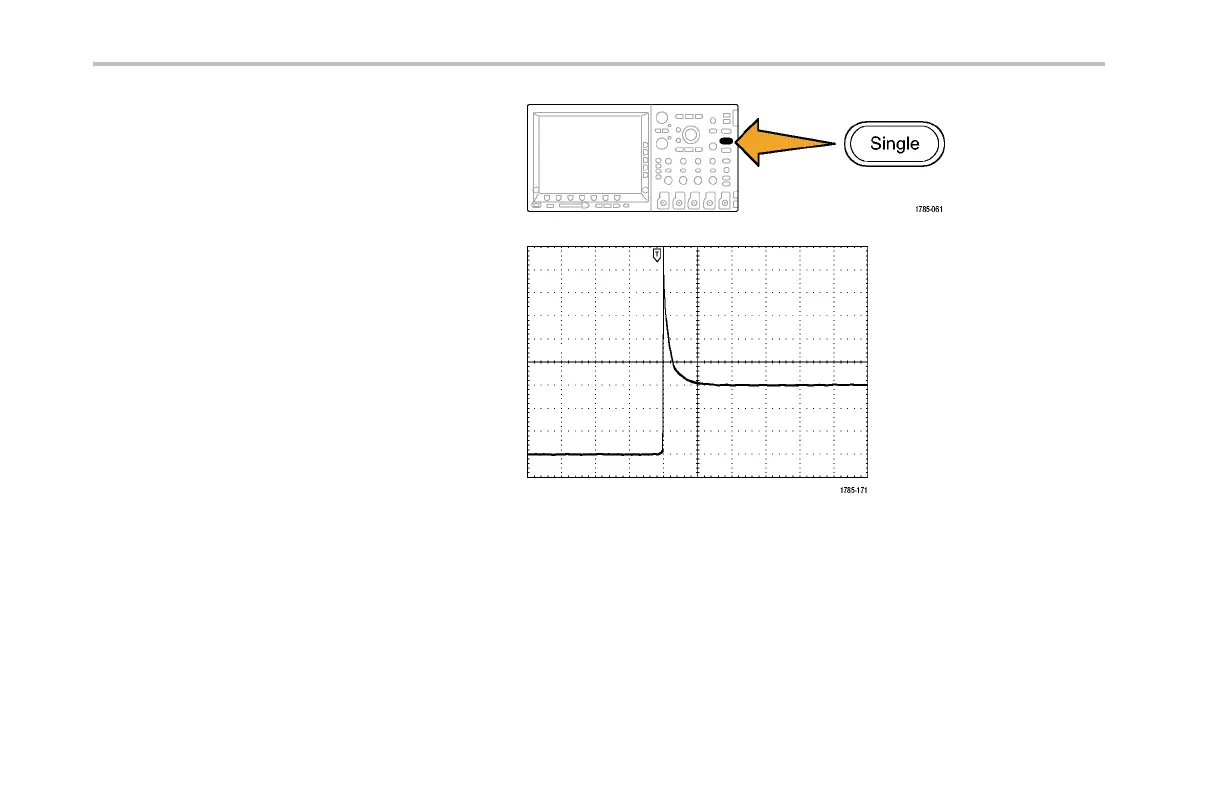

8. Push Single (single sequence).
When the relay opens, the oscilloscope
triggers and captures the event.
The S ingle sequence button disables auto
triggering so that only a valid triggered
signal is acquired.
232 DPO4000 Series User Manual
