Get Acquainted with the Instrument
5. The trigger status readout shows trigger
status. Status conditions are:
Trig’d: Triggered
Auto: Acquiring untriggered signal
PrTrig: Acquiring pretrigger data
Trig?: Waiting for trigger
Trig’d

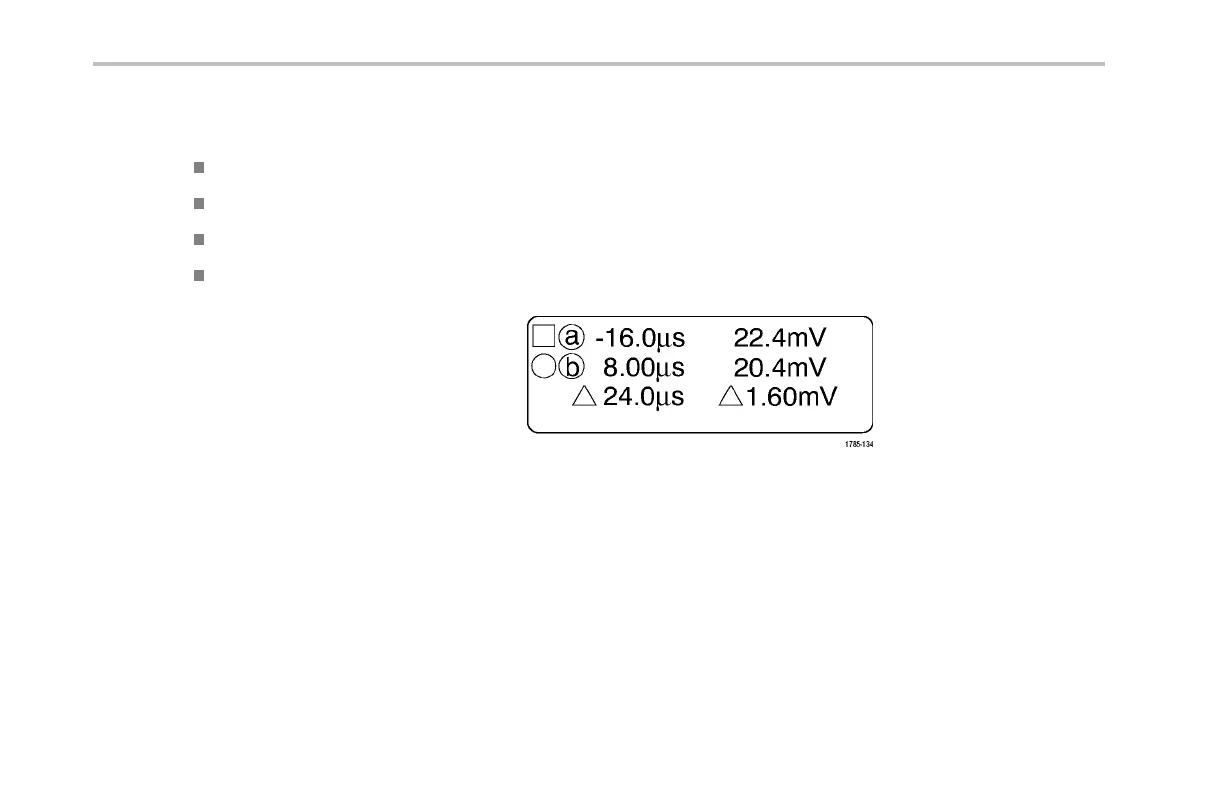

6. The cursor readout shows time, amplitude,
and delta (∆) values for each cursor.
For FFT measurements, it shows frequency
and magnitude.
62 DPO4000 Series User Manual
