Acquisition
Acquisition
This section contains concepts of and procedures for using the acquisition system. Detailed i nformation is available in the
online help.
Setting Up Signal Input
Use front-pan
el buttons to set up y our instrument to acquire the signal.

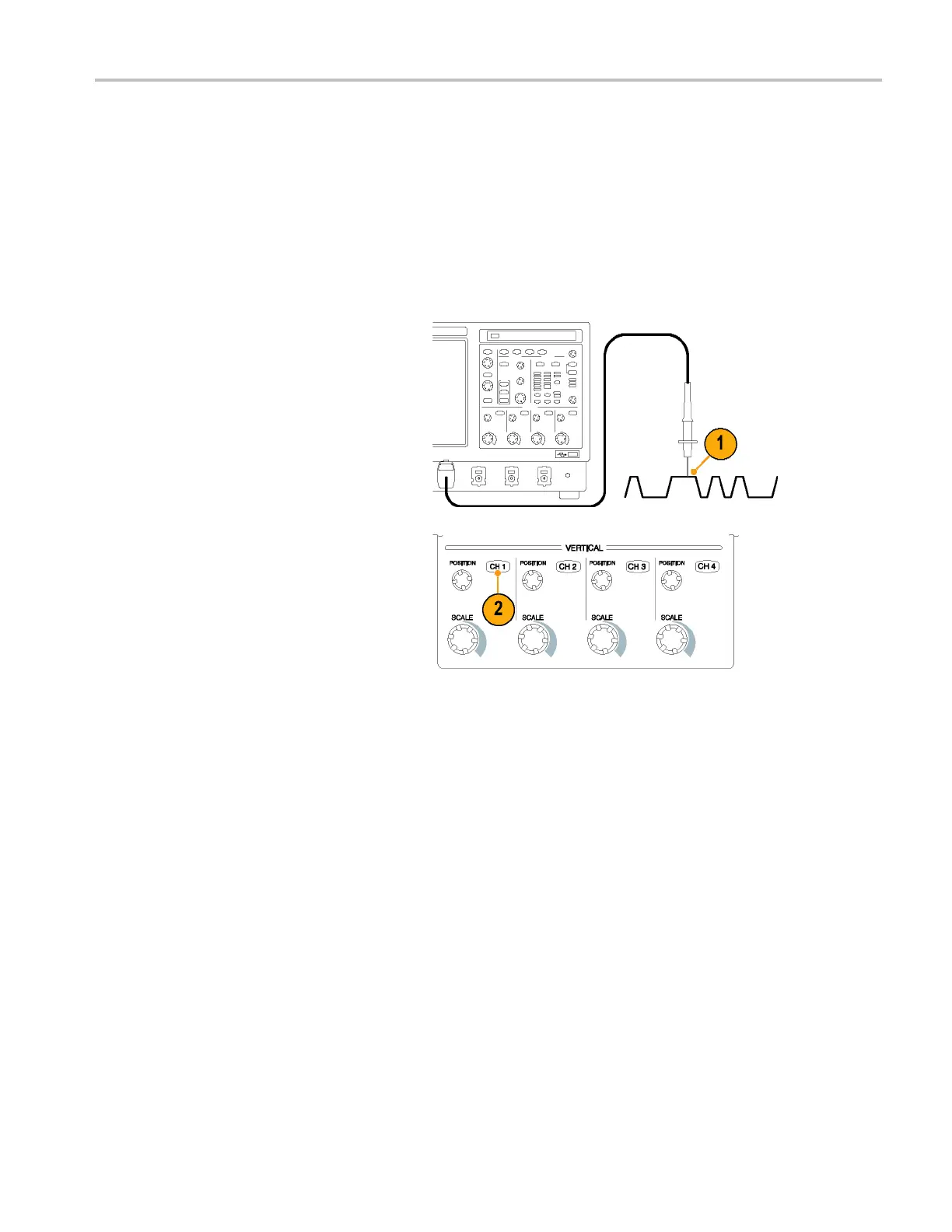

1. Connect the probe to the input signal
source.
2. Select the input channel by pushing the
front-pan
el buttons.
TDS6000B & TDS6000C Series Quick Start User Manual 15
