Run Application
Software
Run Applicati
on Software
The Optional Application Software CD contains free five-time trials of optional application software that you can install on your
instrument. These applications provide application-specific m easurement solutions. Some examples are described below.
Additional packages may be available. Contact your Tektronix representative or visit our Web site at www.tektronix.com
for more information.
Use TDSJIT3 Advanced or TDSJIT3 Essentials Jitter Analysis Software to characterize timing performance. Analyze
jitter on contiguous clock cycles using single-shot acquisitions.
Use TDSRTE Real Time Eye Measurement Software to perform serial data compliance and analysis. These are
compliance m odules for many serial standards.
Use TDSH T3 HDMI Compliance Test Software to verify conformance to HDMI standards and test specifications (CTS).
Use TDSDVI Compliance Test Solution Software for DVI physical layer compliance testing.
Use TDSDDM2 Disk Drive Measurement Software to measure disk drive signals according to IDEMA standards.
Use TDSDVD Optical Storage A nalysis and Measurement Software for automatic amplitude and timing measurements,
providing you with the flexibility to modify signal processing blocks to maximize design performance.
Use TDSET3 to perform 10/100/1000 Base-T Ethernet compliance testing.
Use TDSUSB2 to characterize USB2 signals including mask testing and parametric testing.
Use TDSCPM2 for mask and measurements compliance testing for ITU-T G.703 and ANSI T1.102 communications
standards.
Use TDSPWR3 Power Measurement Software to quickly measure and analyze pow er dissipation in power supply
switching devices and magnetic components.
Use TDSPTD Protocol Trigger and Decode Software to trigger and decode 8 B/10 B data on high-speed serial or data
protocols. Protocol triggering u p to 3.125 GS/s is available on TDS6000C instruments with Option ST. The decode
feature is available on all models.

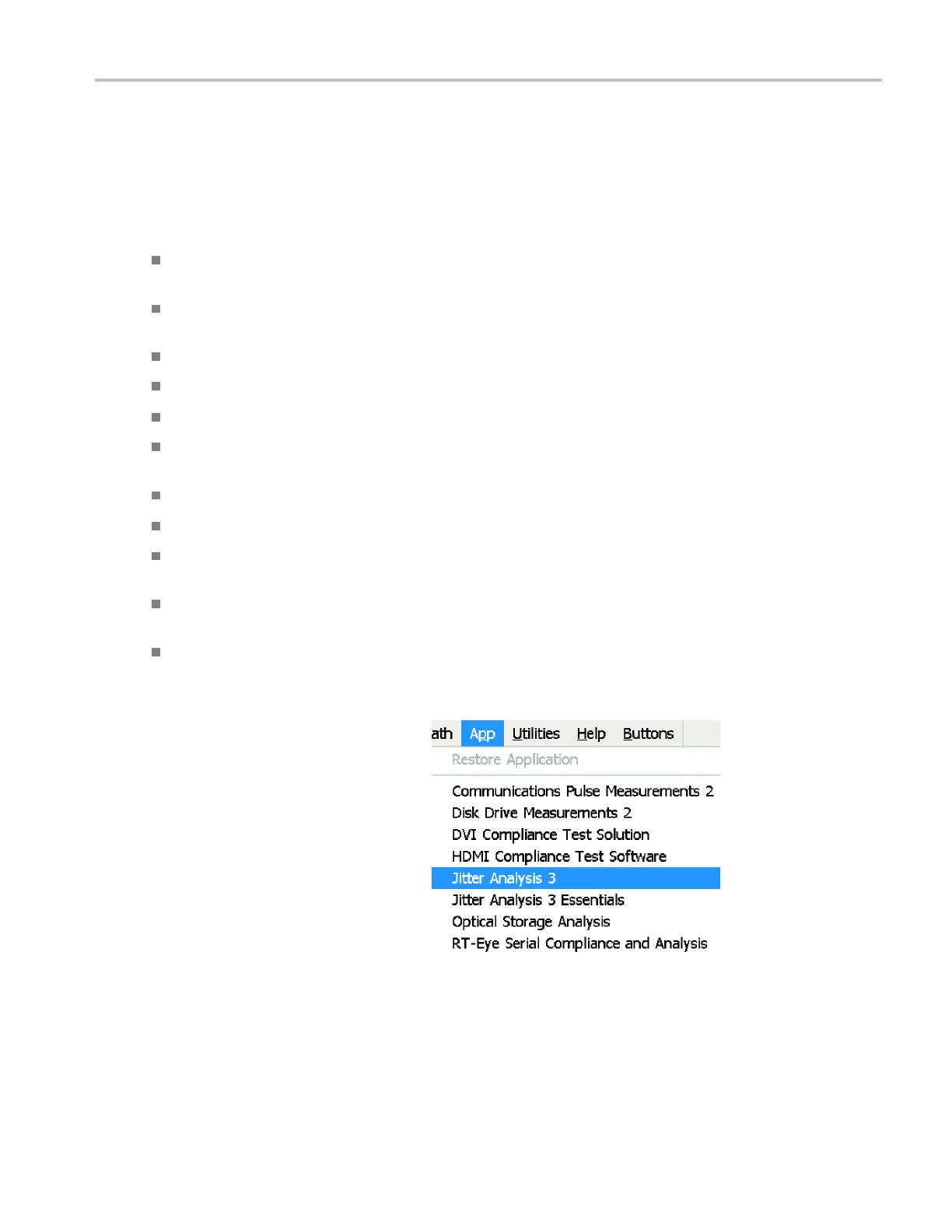

Follow the instructions provided with the
application software to install it. To run the
software, select File > Run App lication and
then select the application.
TDS6000B & TDS6000C Series Quick Start User Manual 81
