Acquisition
Using FastFrame Mode
FastFrame allows you to capture m any trigger events as single records in a larger record, and then view and measure
each record individually. Time Stamps display the absolute trigger time for a specific frame and the relative time between
triggers of two specified frames.

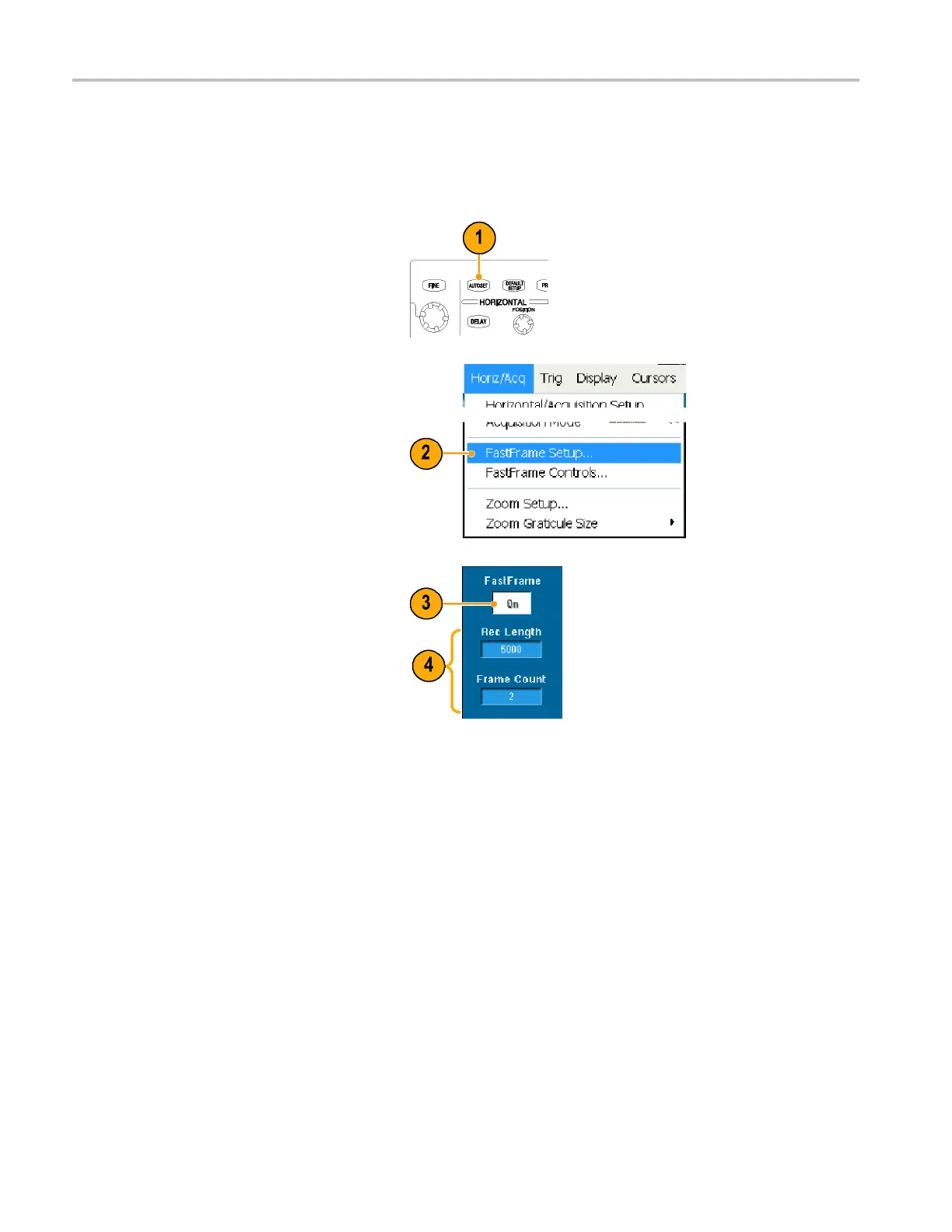

1. Push AUTOSET to set the horizontal,
vertical, and trigger controls or set the
controls manually.
2. Select Horiz/Acq > FastFrame Setup...
.
3. Click FastFrame On.
4. Select Rec Length and Frame Count.
Then use the multipurpose knobs to set
each one. Frame count represents the
number of trigger events that will be
captured. Record length is the number
of samples that will be stored with each
trigger event (or frame.) The frame count
will be reduced if there is insufficient
memory to store all the records.
26 TDS6000B & TDS6000C Series Quick Start User Manual
