Display a Wavefo
rm
Zooming in Multiple Areas

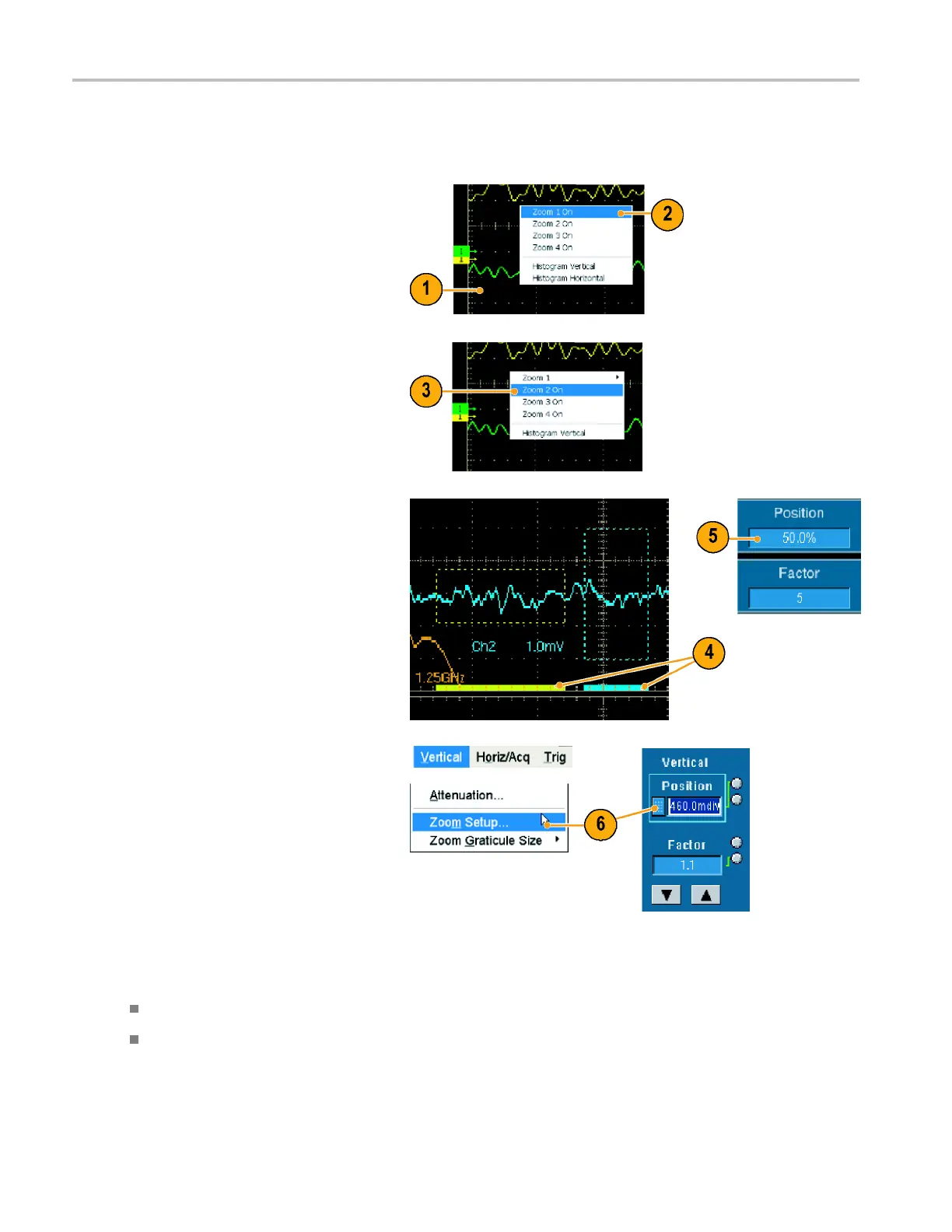

When you want to view and compare multiple areas of one record at the same time use the following procedure.
1. Click and drag a box around the area of
the waveform that you want to zoom.
2. Select Zoom 1 On.
3. Click and dra
g a box around another
area of the waveform that you want to
zoom, and then select Zoom 2 On .
4. To adjust the zoomed area horizontally,
click the horizontal marker below the
Zoom box to select the zoomed area.
5. Use the multipurpose knobs to adjust
the horizontal position and factor of the
selected zoom area.
6. To adjust
the zoomed area vertically,
select Vertical > Zoom Setup... and
then use the multipurpose knobs to
adjust t
he Vertical Position and Factor.
Quick Tips
To clear the zoom area, click Position Factor Reset from the Zoom Setup control window.
You can turn each zoom display on and off from the Zoom Setup control window.
44 TDS6000B & TDS6000C Series Quick Start User Manual
