Analyzing Wavef
orms
SettingUpaHistogram
You can display either a vertical (voltage) or horizontal (time) histogram. Use histogram measurements to get statistical
measurement data for a section of a waveform along one axis. Histograms are not available in FastFrame mode.

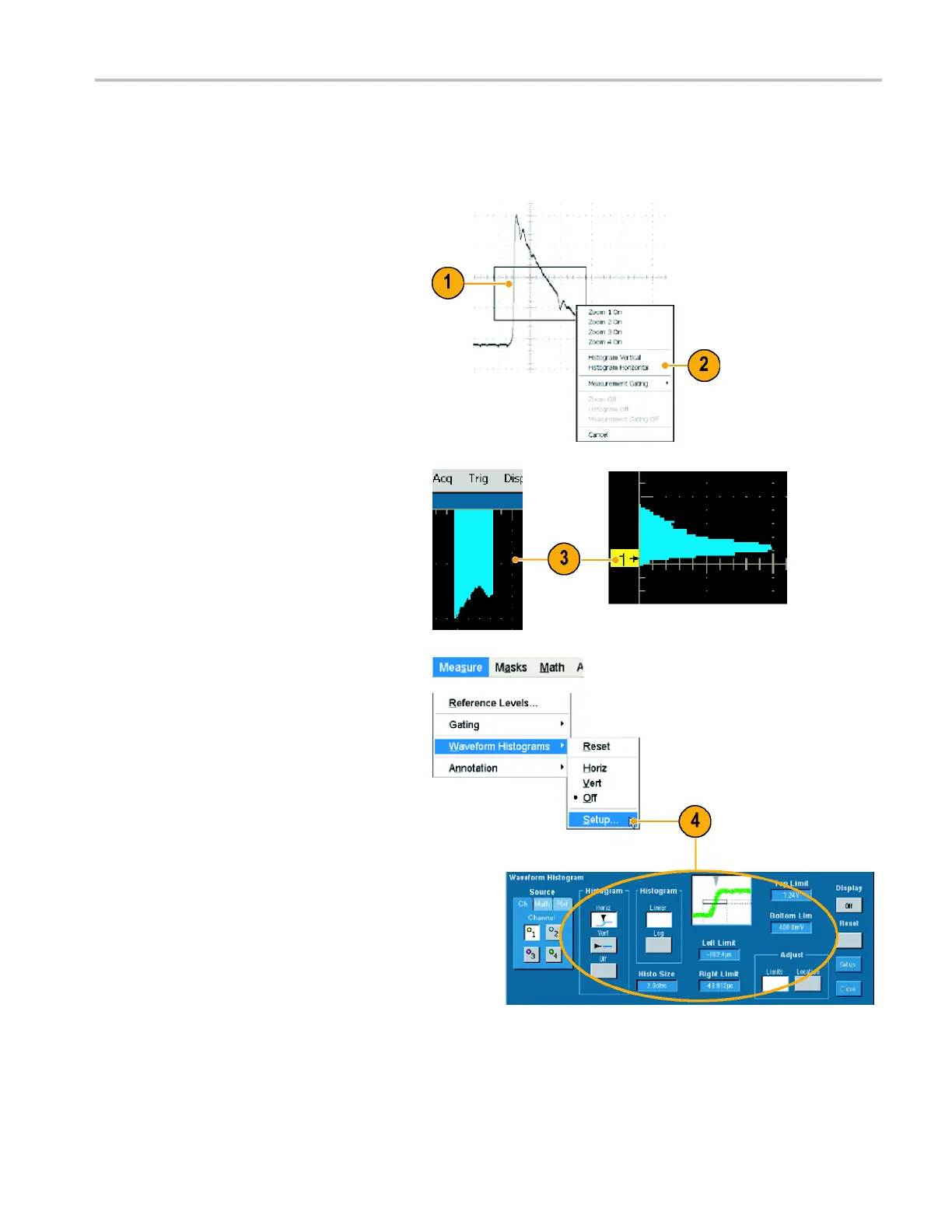

1. Click and drag across the segment of the
waveform that you want the histogram
to cover. For a horizontal histogram, for
example, it is best to make the box wider
than it is tall.
2. Select Histogram Vertical or Histogram
Horizontal from the shortcut menu.
3. View the histogram at the top (for
horizontal histograms) or the left edge
(for verti
cal histograms) of the graticule.
4. To make adjustments to the histogram
scale or the size and location of the
histogram box, select Measure >
Waveform Histograms... > Setu p...,
and then use the Histogram Setup
control window.
5. You can also take automated
measurements on histogram
data.(See page 46, Taking Automatic
Measurements.)
TDS6000B & TDS6000C Series Quick Start User Manual 55
