Tektronix TDS6000B Series User Manual

Analyzing Wavef
orms
Taking Cursor Measurements
Cursors are an easy tool to use for taking measurements on acquired data.

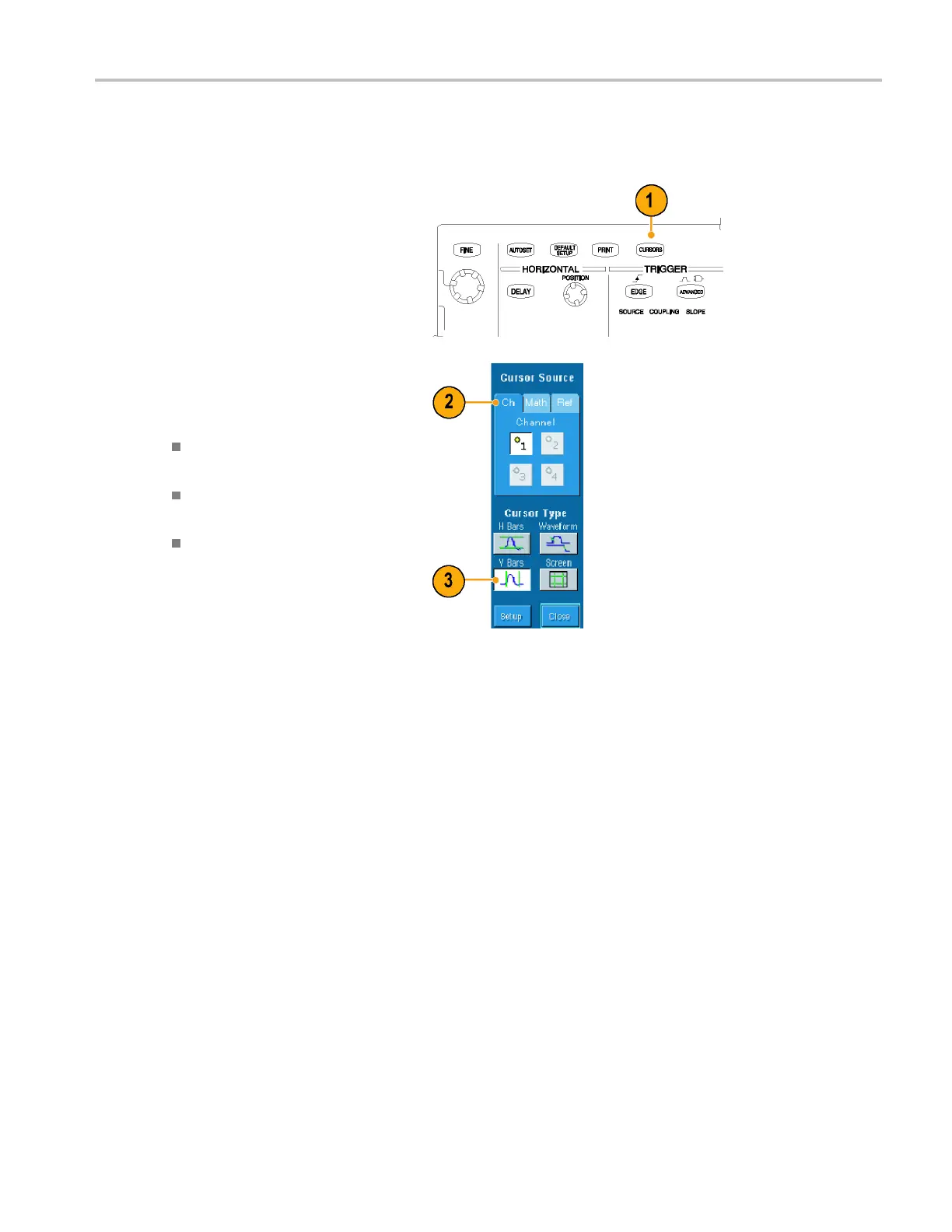

1. Push CURSORS.
2. Select the Cursor Source.
3. Select a cursor type from one of the
following:
H Bars measure amplitude (typically
in volts or amperes)
V Bars measure horizontal
parameters (typically time)
Waveform and screen cursors
measure vertical and horizontal
parameters simultaneously.
Waveform curs ors are attac hed to
the waveform and screen cursors
float, unattached to the waveform.
TDS6000B & TDS6000C Series Quick Start User Manual 53
