Analyzing Wavef
orms
Analyzing Wav
eforms
Your instrument features cursors, automatic measurements, statistics, histograms, math, spectral analysis, and advanced
pass/fail tests to assist you in analyzing waveforms. This section contains concepts and procedures for analyzing waveforms.
Detailed information is available in the online help.
Taking Automatic Measurements

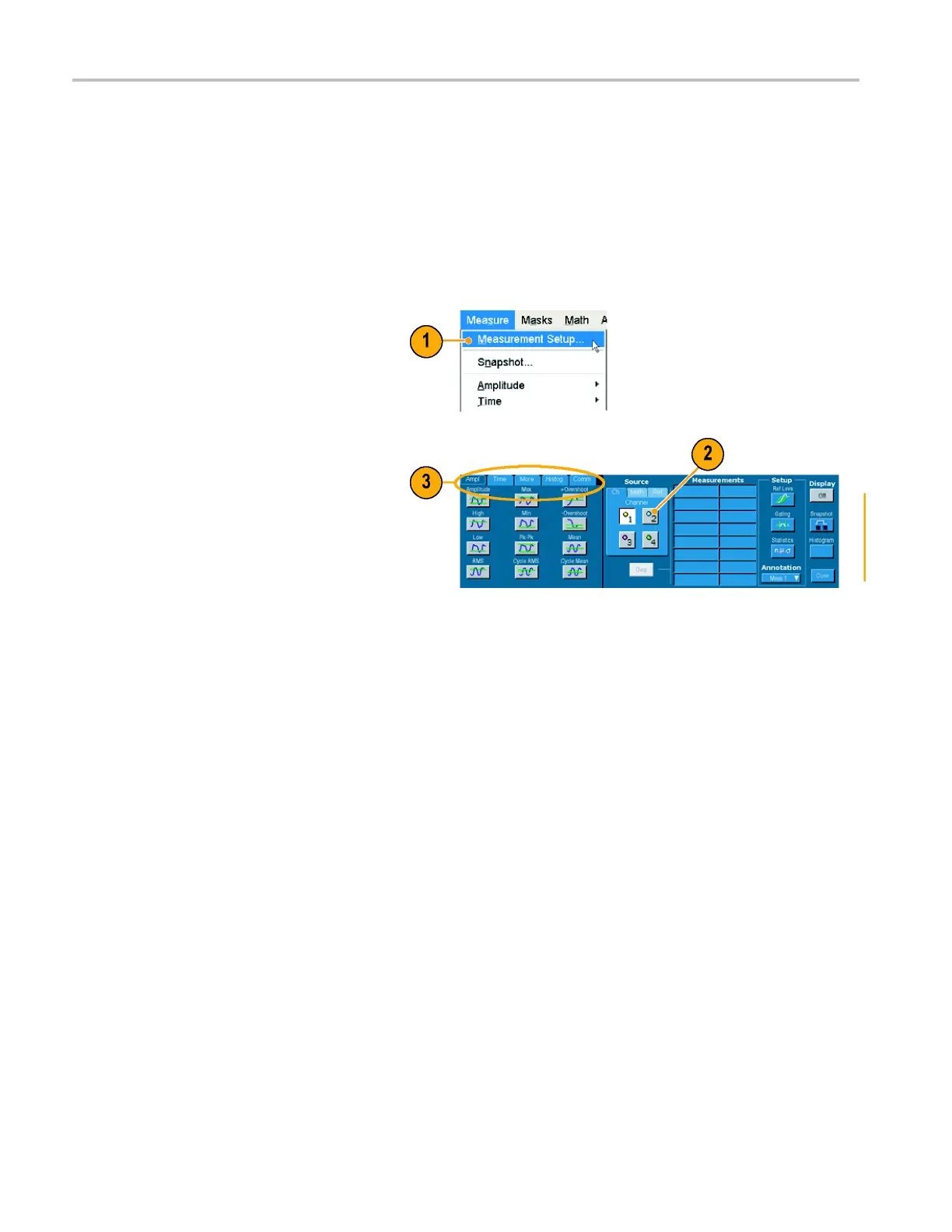

1. Select Measure > Measurement
Setup... .
2. Select the channel, math or reference
waveform that you want to measure.
3. Using the tabs, select up to
8 m easurements in five different
categories.
46 TDS6000B & TDS6000C Series Quick Start User Manual
