Pinpoint Trigge
rs

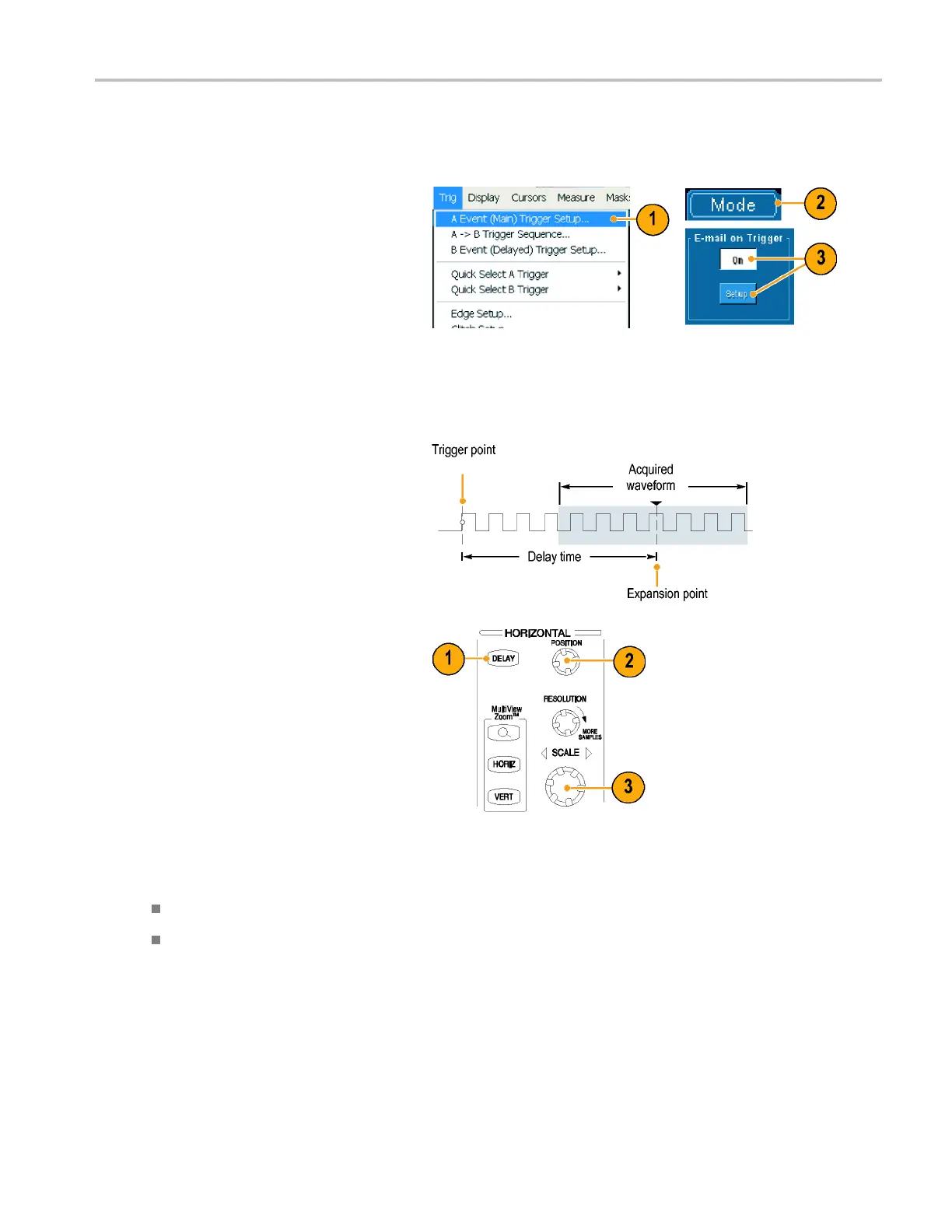

SendingE-mailonTrigger
You must configure e-mail on event before performing the following procedure. (S ee page 65, Setting Up E-mail on Event.)
1. Select Trig > A Event (Main) Trigger
Setup....
2. Select the Mode tab.
3. Under E-mail on Trigger, click On,and
then click Setup. (See page 65, Setting
Up E-mail on Event.)
Using Horizontal Delay
Use horizontal delay to acquire waveform
detail in a region that is separated from the
trigger location by a significant interval of
time.
1. Push DELAY.
2. 2. Adjus
t the delay time with the
horizontal POSITION control, or enter
the delay time in the control window.
3. 3. Adjust the horizontal SCALE to
acquir
e the detail that you need around
the delay expansion point.
Quick Tips
Use MultiView Zoom and Horizontal Delay together to magnify a delayed acquisition.
Toggle Horizontal Delay on and off to quickly compare si gnal details at two different areas of interest, one near the
trigger location and the other centered at the delay time.
TDS6000B & TDS6000C Series Quick Start User Manual 35
