Display a Wavefo
rm
Display a Wave
form
This section contains concepts and procedures for displaying a waveform. Detailed information is available in the online help.
Setting the Display Style

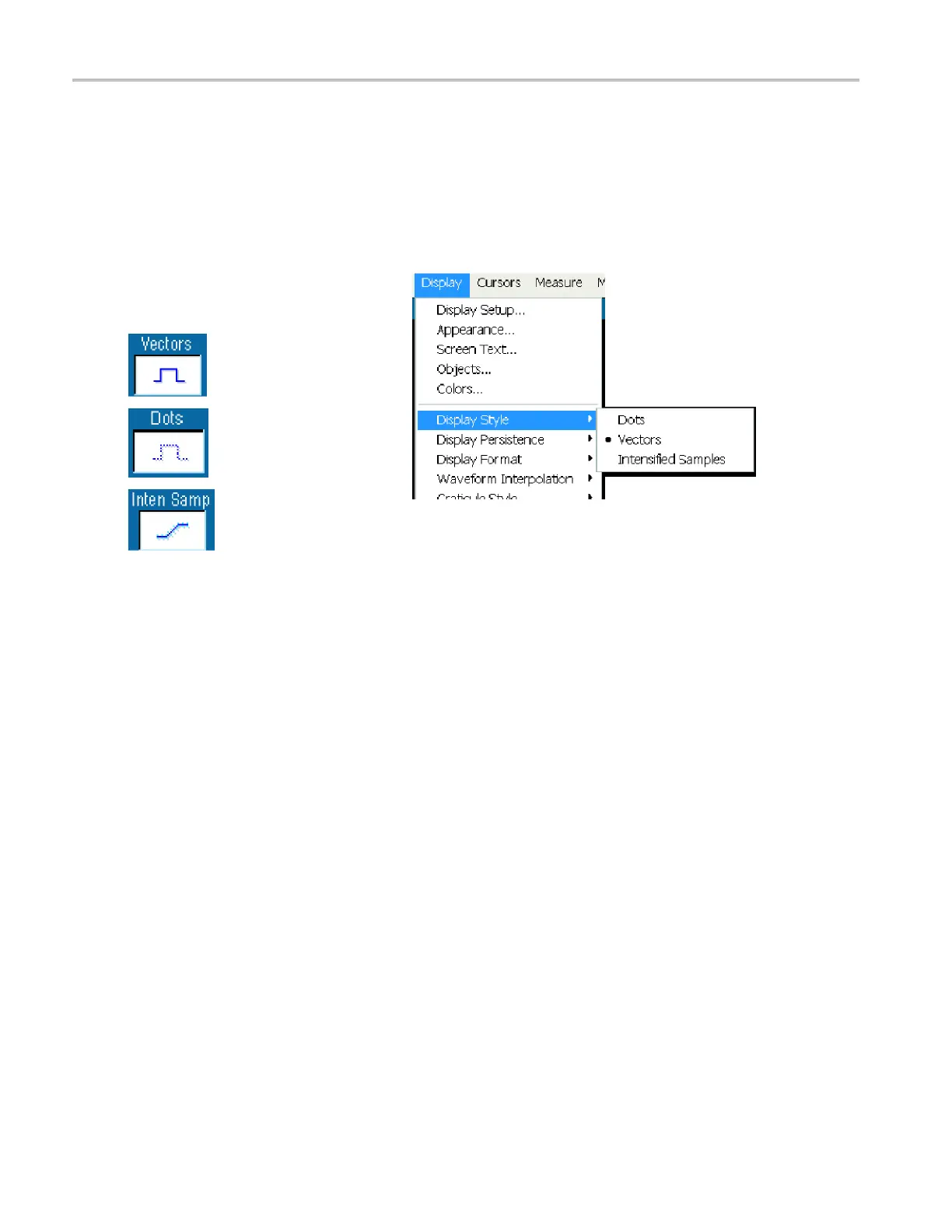

To set the display style select Display >
Display Style, and then select one of the
following styles:
Displays w aveform s with
lines drawn between
record points.
Displays wav
eform
record points as dots on
the screen.
Displays the actual
samples as i
ntensified
dots. Interpolated
points are shown in
the wavefor
m color.
36 TDS6000B & TDS6000C Series Quick Start User Manual
