Tektronix TDS6000B Series User Manual

Display a Wavefo
rm
Displaying the Date and Time

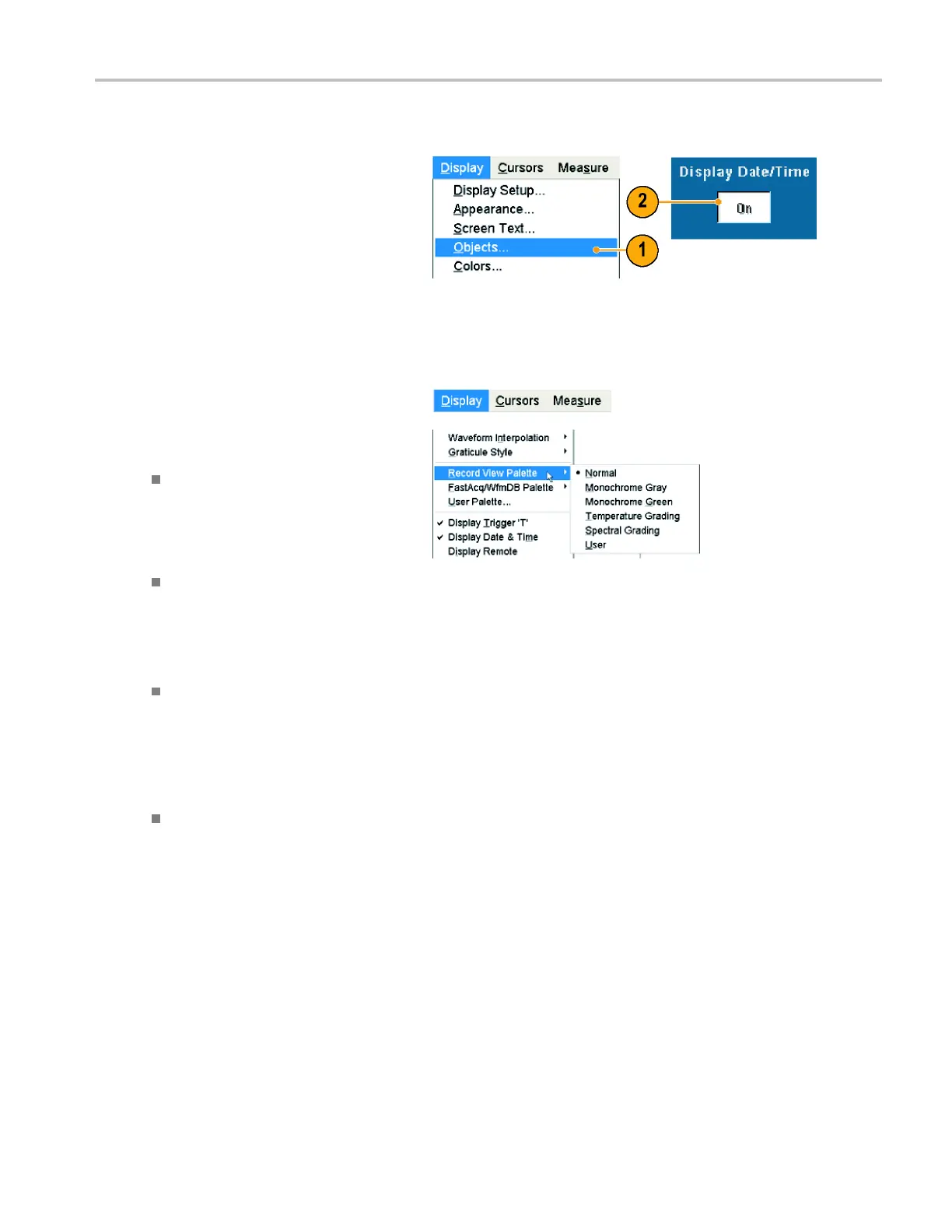

1. Select Display > Objects....
2. Toggle the display of the date and time
on the graticu
le. U se the Utilities menu
to set the date and time.
Using the Color Palettes
Select Display > Record View Palette or
WfmDB Palette, and then select one of the
following color schemes for the waveform
and graticule:
Normal displays hues and lightness
levels for best overall viewing. The color
of each channel waveform matches the
color o f the corresponding front-panel
vertical SCALE knob.
Monochrome Gray displays areas of
the w aveform with the highest sample
density in lighter gray shades. The
areas of lowest sample density appear in
darker gray shades.
Monochrome Green displays areas of
the w aveform with the highest sample
density in lighter green shades. The
areas of l owest sample density appear
in darker green shades. It most closely
resembles analog oscilloscope displays.
Temperature Grading displays areas of
the w aveform with the highest sample
density in red shades. The areas of
lowest sample density appear in blue
shades.
TDS6000B & TDS6000C Series Quick Start User Manual 41
