Managing Data
Managing Data
This section contains procedures for saving and recalling waveforms and setups, and exporting images, waveforms, and
measurements. Also procedures are included for using the c lipboard and printing from your instrument. Detailed information
is available in the online help.
Saving Waveforms

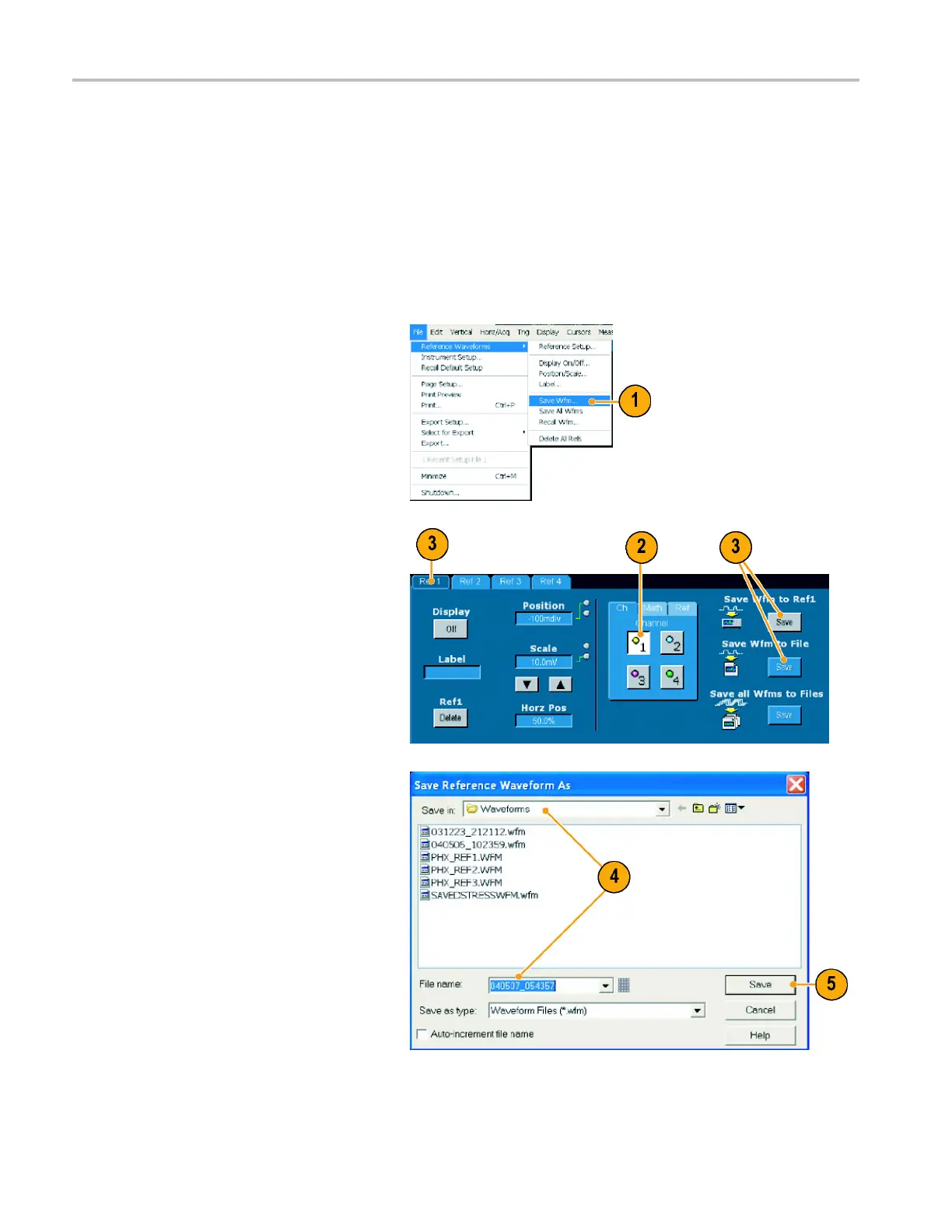

1. To save waveform s, select File >
Reference Waveforms > Save Wfm....
2. Select the source.
3. You can save the w aveform as a
reference waveform in the instrument
memory or as a .wfm file in a Windows
directory.
To save the waveform as a reference,
select a Ref 1 through Ref 4 tab, and
click Save Wfm to Ref(n) Save.
To save as a .wfm file, click Save Wfm to
File Save, and select the location where
you want to save the waveform.
4. If you are saving as a .wfm file, ty p e in a
file name or use the default.
5. Click Save.
72 TDS6000B & TDS6000C Series Quick Start User Manual
