Analyzing Wavef
orms

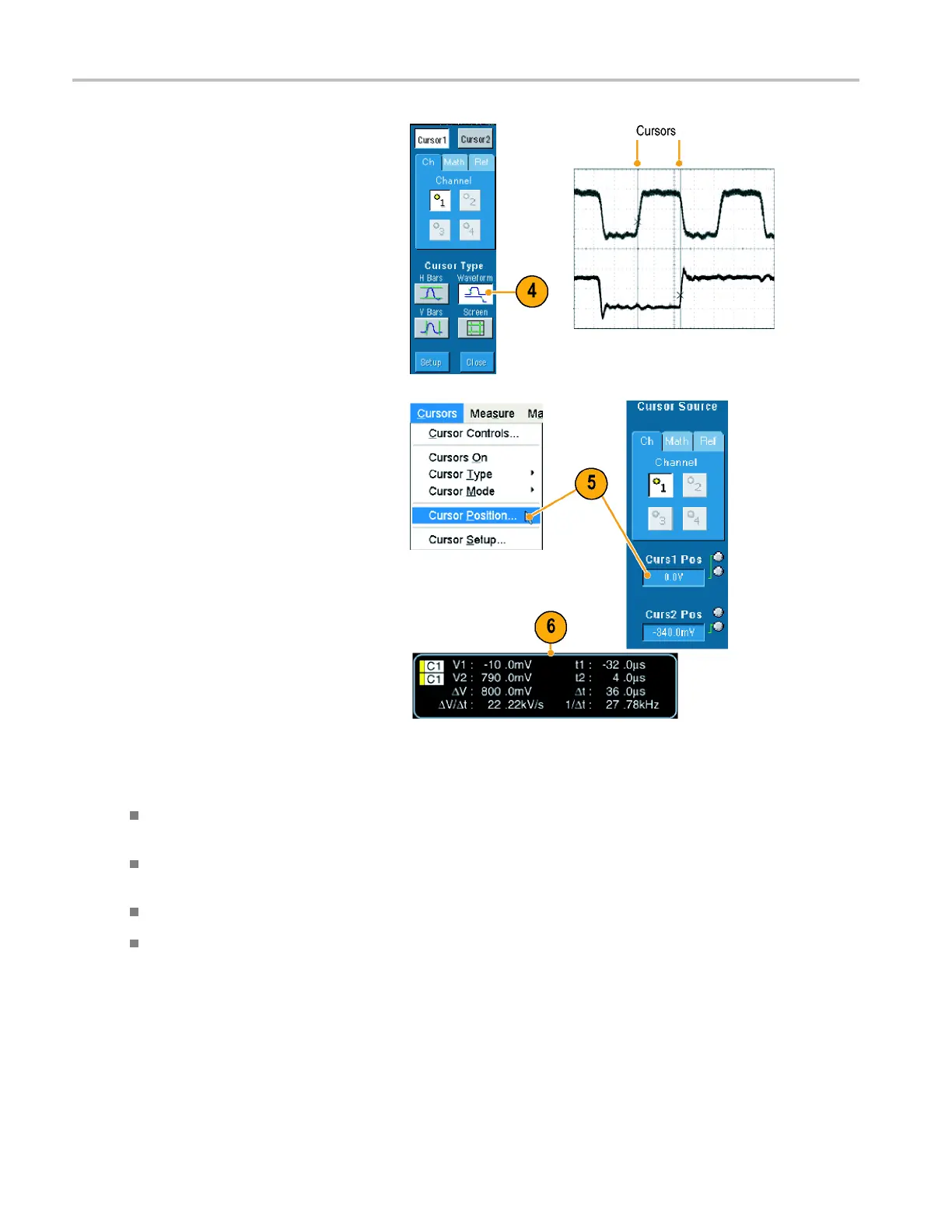

4. If you want to take measurements
between two waveforms, select
Waveform, and
then select the
waveform source for each cursor.
5. Select Cursors > Cursor Position ...,
and then use the multipurpose knobs to
adjust the cursor position.
6. Read cursor measurement results in the
display.
Quick Tips
Use the
Cursor Track Mode to set the cursors to move in tandem. Use the Cursor Independent mode to move the
cursors separately.
If you use the zoom graticule, you can place a cursor directly on a specific w aveform point to take precision
measurements.
You can also move cursors by clicking and dragging them to a new position.
Vertical cursors measure the time from the trigger point to the vertical cursor.
54 TDS6000B & TDS6000C Series Quick Start User Manual
