27
Install monitoring software on the computer connected to LAN5, and set other ports as mirrored ports.

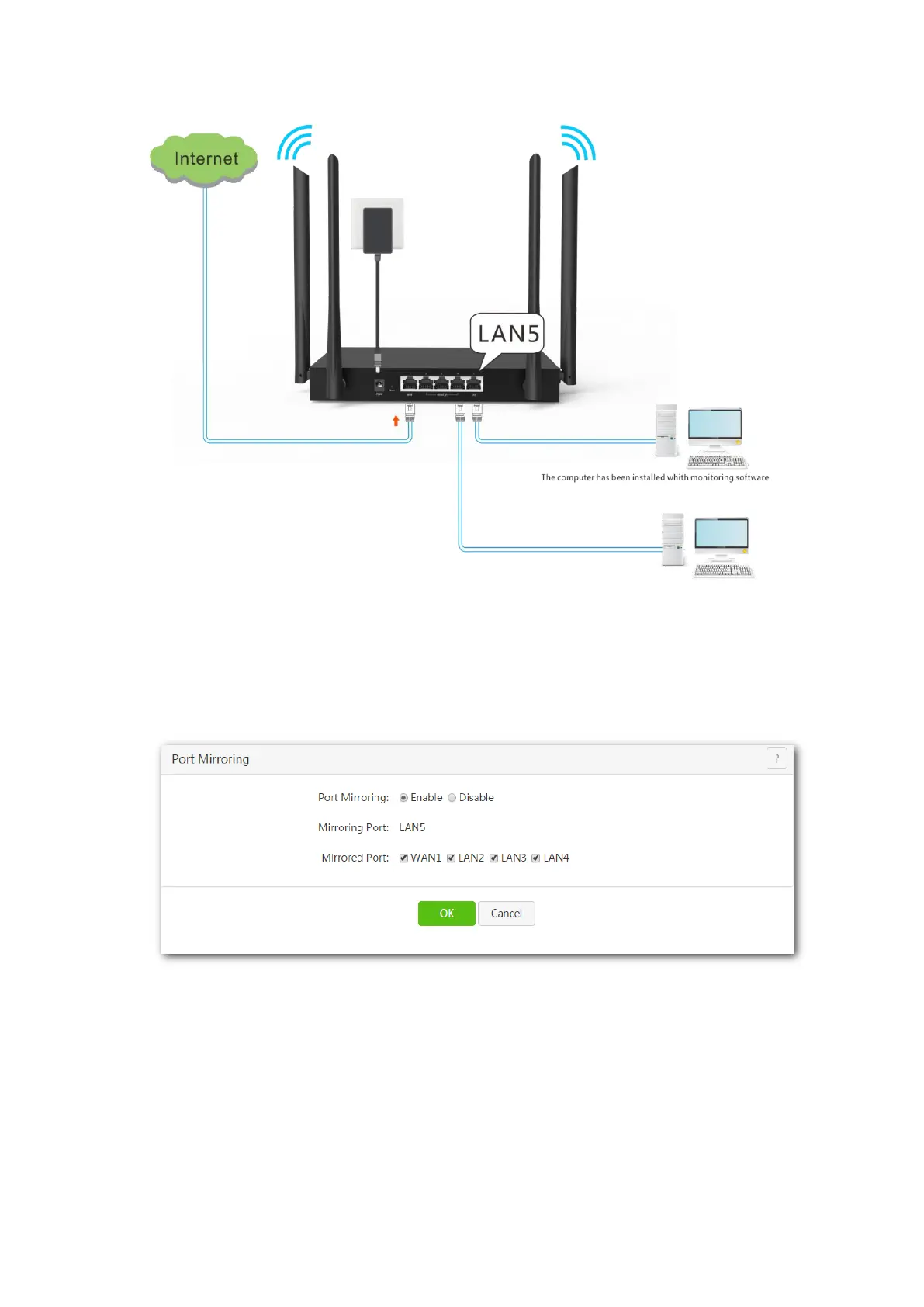

The following figure shows the scenario:
Configuration procedure
Step 1 Choose Network > Port Mirroring.
Step 2 Click Enable check box of Port Mirroring.
Step 3 Select the mirrored ports, such as WAN1, LAN2, LAN3, and LAN4, and click OK.
---End
Verification
Verify that the computer installed with monitoring software (connected to the LAN5 port of the router) can
monitor the data packets of the selected mirrored ports.
