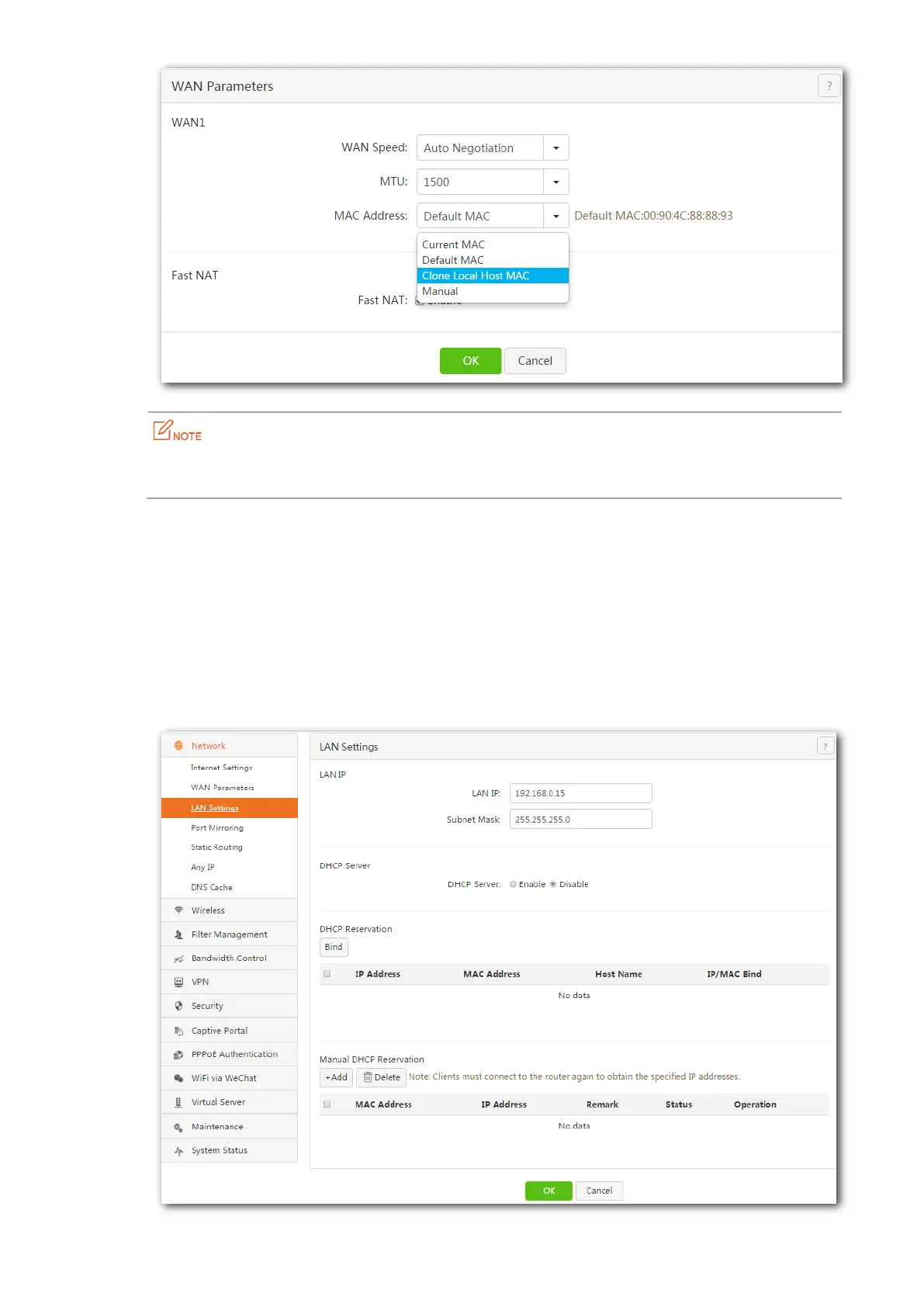

19
Mak
e sure tha
t the MAC add
ress cloned is the
MAC ad
dress
of the comput
er tha
t can ac
cess the
int
ernet without the r
outer
.
5.3
LAN Settings
5.3.1
Overview
This
section
enables
you
to
modify
the
IP
addr
ess
of
the
LAN
port,
DHCP
server
par
ameters,
and
to
bind
/unbind
the MAC add
ress and IP add
ress of the cl
ients.
T
o access the pag
e,
choose
Network
>
LA
N Settin
gs
.
29
31
Table of Contents
Default Chapter
5
Table of Contents
5
1 Get to Know Your Device
12
Overview
12
Features
12
Appearance
12
Front Panel
12
Rear Panel
13
Label
13
Packing List
14
2 Installing the Router
15
Installation Notes
15
Safety Precautions
15
Environmental Requirements
15
Installing the Router
16
Connecting the Router
16
3 Internet Connection Setup
18
4 Managing Devices
22
Log in to the Router Web UI
22
Log out of the Router Web UI
23
Web UI Layout
23
5 Network Settings
25
Pppoe
27
Dynamic IP
27
Static IP
28
WAN Parameters
28
Overview
28
Configuring MAC Address Cloning
29
LAN Settings
30
Overview
30
Modifying the LAN IP
34
Configuring the DHCP Server Parameters
35
DHCP Reservation
35
Port Mirroring
36
Overview
36
Example of Port Mirroring
37
Static Routing
39
Overview
39
Example of Static Routing
39
Any IP
42
DNS Cache
43
6 Wireless Settings
44
Basic Settings
44
Overview
44
Modifying Basic Parameters
46
Advanced Settings
47
Overview
47
Modifying Advanced Parameters
49
WMM Settings
49
Overview
49
Changing WMM Advanced Parameters
52
RF Optimization
52
Overview
52
Modifying Advanced Parameters
55
Guest Network
55
Overview
55
Changing Parameters of the Guest Network
57
Wireless Repeater
58
Overview
58
Example of Configuring of Wireless Repeater
58
Access Control
61
Overview
61
Example of Configuring Access Control
62
7 Filter Management
66
IP Group & Time Group
66
Overview
66
Adding a Time Group
67
Adding an IP Group
68
IP Filter
68
Overview
68
Adding an IP Filter Rule
70
Example of IP Filter
71
MAC Filter
73
Overview
73
Adding the MAC Filter Rule
75
Example of MAC Filter
76
Port Filter
78
Overview
78
Adding the Port Filter Rule
79
Example of Port Filter
80
Web Filter
83
Overview
83
Add a Web Filter Rule
84
Adding a Web Category
86
Example of Web Filter
88
Multi-WAN Policy
91
Overview
91
Custom Policy Rule
91
Example of Custom Policy
93
8 Bandwidth Control
95
Overview
95
Configuring Automatic Bandwidth Control
95
Manual Bandwidth Control
95
Example of Manual Bandwidth Control
97
Networking Requirement
97
Configuration Procedure
97
Verification
99
9 VPN Service
100
PPTP/L2TP Client
100
PPTP/L2TP Server
102
Ipsec
104
Example of PPTP/L2TP Configuration
108
Networking Requirement
108
Solution
108
Configuration Procedure
109
Verification
112
Example of Ipsec Configuration
115
Networking Requirement
115
Solution
115
Configuration Procedure
115
Verification
118
10 Security
119
IP-MAC Binding
119
Overview
119
Adding an IP-MAC Binding Rule
120
Example of IP-MAC Binding
121
Firewall
124
11 Captive Portal
126
Basic Settings
126
Overview
126
Enabling Captive Portal
127
User Management
128
Overview
128
Adding Authentication-Free Host
129
Adding a Web Account
130
Example of Web Authentication
131
Networking Requirement
131
Solution
131
Configuration Procedure
131
Verification
133
12 Pppoe Authentication
135
Basic Settings
135
Overview
135
Enabling Pppoe Authentication
137
User Management
138
Overview
138
Adding a Pppoe Account
139
Example of Pppoe Authentication
140
Networking Requirement
140
Solution
140
Configuration Procedure
140
Verification
143
13 Wifi Via Wechat
146
Overview
146
Enabling Wifi Via Wechat
150
Example of Wifi Via Wechat
150
Networking Requirement
150
Solution
150
Configuration Procedure
151
Verification
153
14 Virtual Server
154
Port Forwarding
154
Overview
154
Adding Port Forwarding
155
Example of Port Forwarding
156
Upnp
158
DMZ Host
159
Overview
159
Enabling DMZ Host
159
Ddns
160
Overview
160
Adding a DDNS Rule
161
Example of DDNS
162
15 Maintenance
166
Login Password
166
Overview
166
Modify the Login Password
167
Reboot
167
Overview
167
Manual Reboot
168
Automatic Reboot
168
Backup/Restore
169
Overview
169
Steps for Backing up Configuration
169
Steps for Restoring the Configuration
169
Firmware Upgrade
169
Steps for Local Upgrade
170
Steps for Online Upgrade
170
Restore Factory Settings
171
Overview
171
Restoring Factory Settings Via WEB UI of the Router
171
Restoring Factory Settings Via Reset Button
172
System Time
172
Overview
172
Manual Setup
172
Remote WEB Management
173
Overview
173
Configuring Remote WEB Management
174
Example of Remote WEB Management
174
Diagnostics
175
Overview
175
Diagnosis with the Ping Command
176
Diagnosis with Traceroute
177
16 System Status
179
System Info
179
Live Users
180
Traffic Statistics
182
Defense Logs
183
System Logs
184
