TESTO 6383 - Page 85

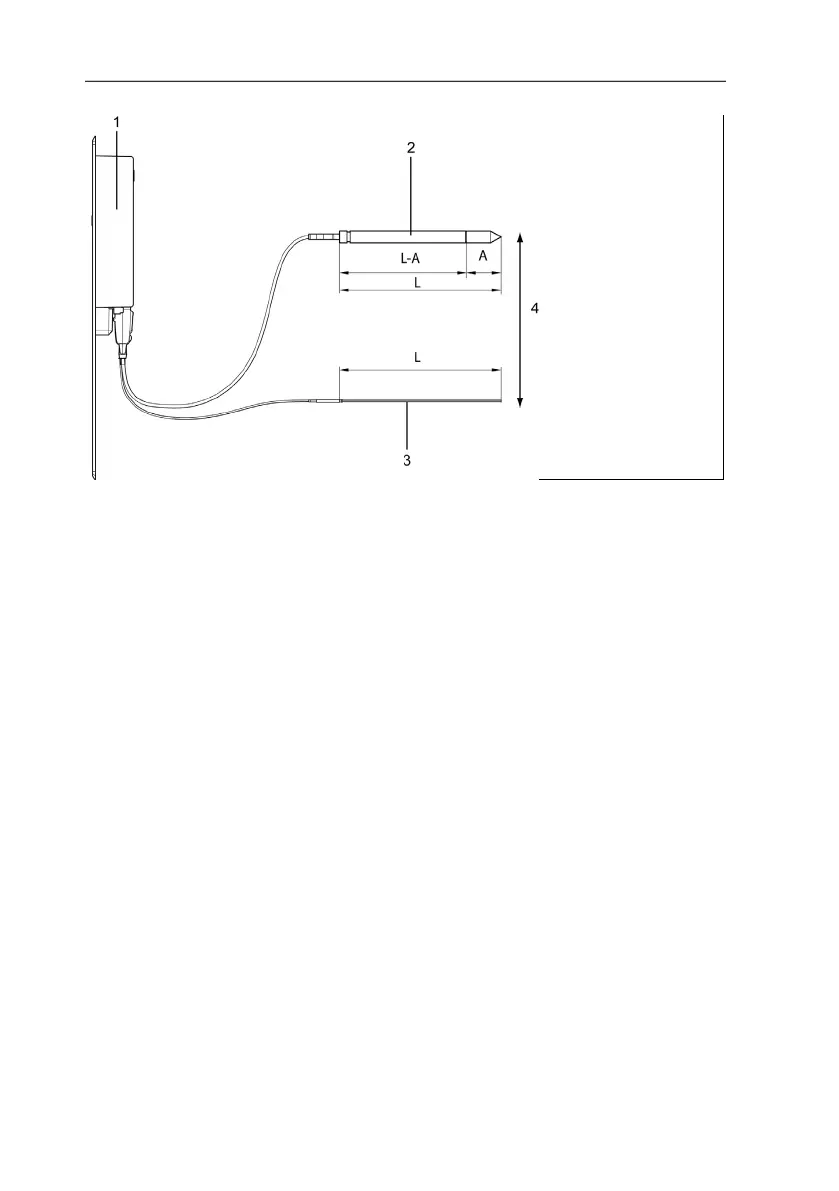

6 testo 6610 probes
85
1
testo 6383
transmitter
2
testo 6614 heated
cable probe
3
Temperature
probe
4
Assembly distance
max. 10 cm
Technical data
Parameters
• Humidity
• Temperature
Measuring range
• Humidity: 0 to 100 % RH
• Temperature: -40 to + 180 °C/-40 to 356 °F
Material
• Probe shaft: Stainless steel
• Line: Sheathed, FEP
• Connector: ABS plastic
Accuracy (at 25 °C/77 °F)*
• Humidity (values valid when using condensation protector
0554 0166)
◦ ± (1.0 % RH + 0.007 x reading) for 0 to 100 % RH
◦ 0.02 % RH/K, dependent upon the process temperature
(with a deviation of 25 °C/+77 °F)
◦ 0.02 % RH/K, dependent upon the electronics temperature
(with a deviation of 25 °C/+77 °F)
• Temperature
◦ ±0.15 °C (0.27 °F) with slope PT1000 class AA
* Refer to the charts below for the correlation between
temperature and accuracy.
