Topcon GR-5 User Manual

Configuring the Receiver Using PC-CDU
P/N 7010-1004
3-35

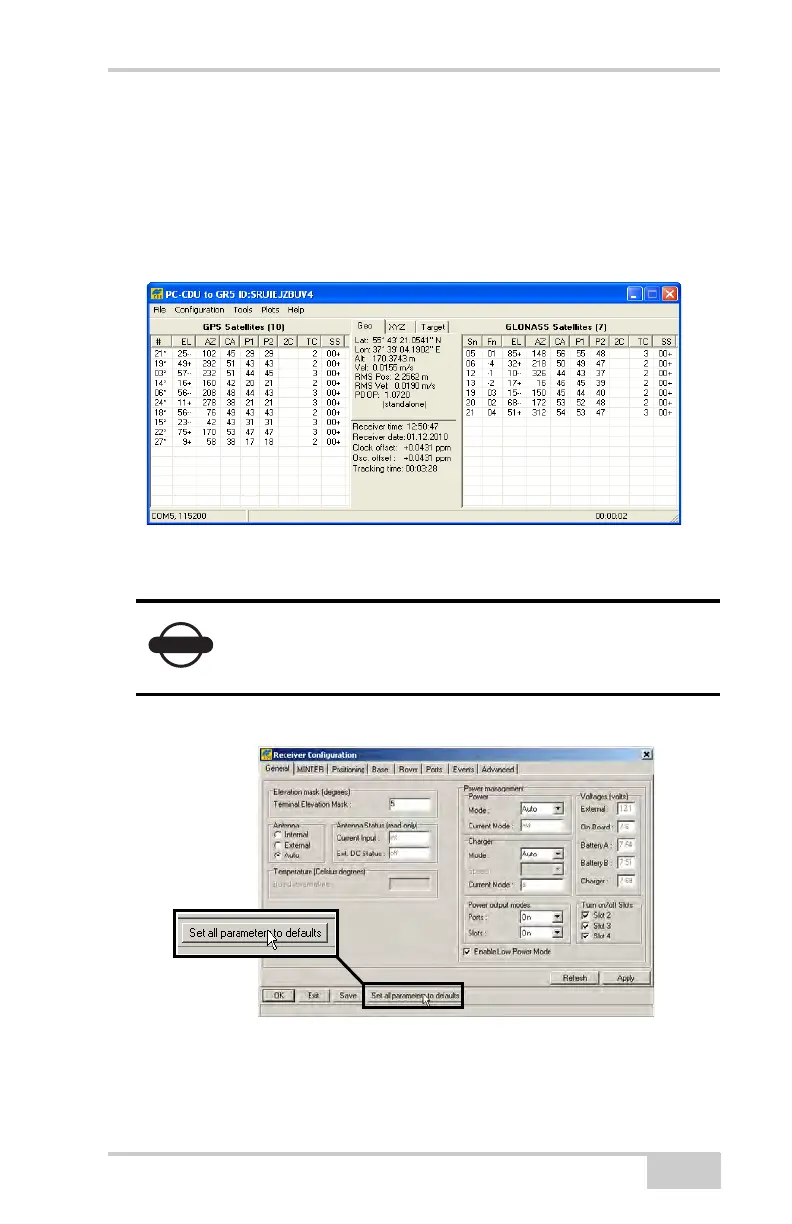

Once a PC-CDU connection with the receiver has been
established, the current communications settings—such as, port
name, baud rate (if applicable), and flow control (if applicable)—
display in the lower-left corner of the main window of PC-CDU.
A timer begins to count up in the lower-right corner as well
(Figure 3-30).
Figure 3-31. PC-CDU Connection Established
5. Select ConfigurationReceiver.
6. Click Set all parameters to defaults (Figure 3-31).
Figure 3-32. Set All Parameters to Defaults
NOTICE
Click Apply after making any configuration
change; otherwise, the receiver will not register the
change.
