GR-5 Receiver Setup and Survey
GR-5 Operator’s Manual
4-2
To set up the Base receiver (Figure 4-1):
1. Install a heavy duty tripod (PN: 22-050501-01) over a known
point. You do not need universal tribrach and tribrach adapter
when working with this tripod.
2. Attach the antenna to the modem antenna connector.
3. Carefully level the tripod and tighten the screws.
4. Attach any other accessories as needed (for example, a backup
power supply).

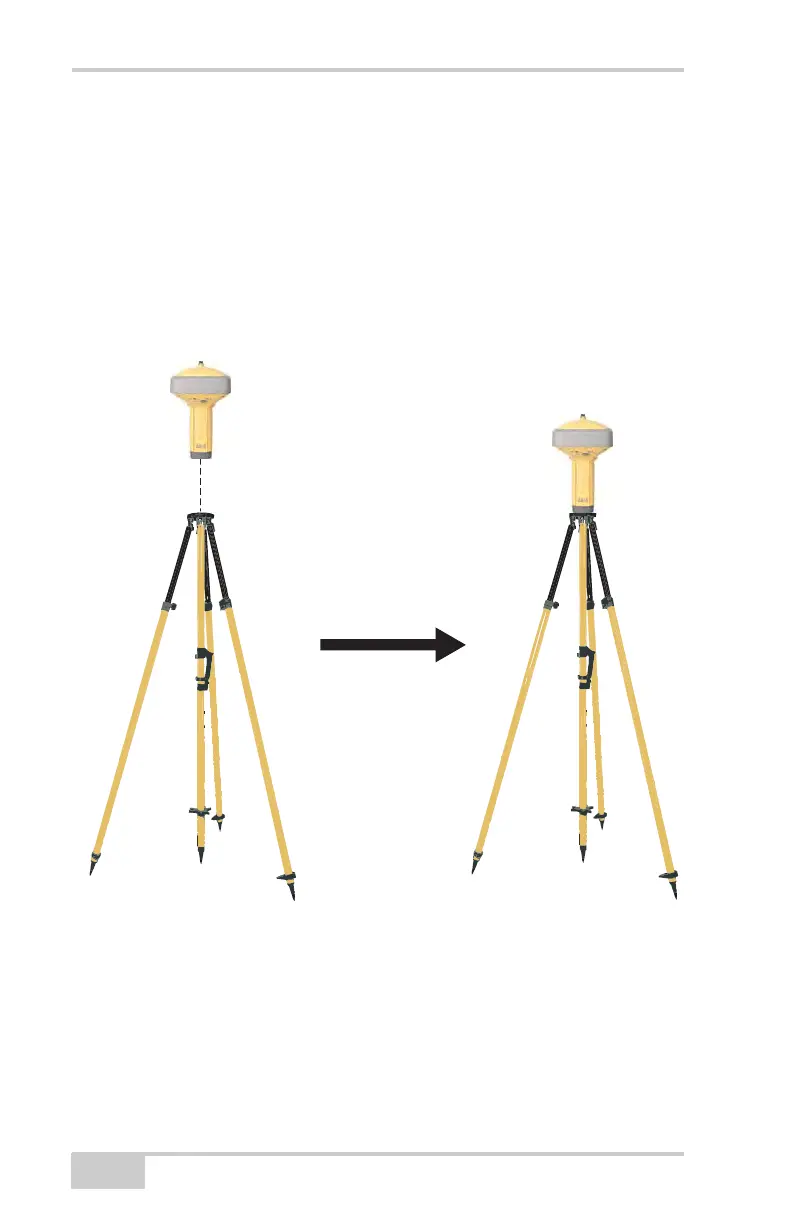

Figure 4-1. Install Tripod and Receiver over Control Point
GR-5 Receiver
Heavy Duty Tripod
