Use PC-CDU to enable the desired FUNCTION key mode in the
receiver, either “LED blink mode switch” for static surveys or
“Occupation mode switch” for kinematic surveys. See “FN Key
Mode parameter” on page 3-46 for details.
Each time data recording is turned off or on, either a new file opens or
data appends to a particular file. See “Always Append to the File
parameter” on page 3-44 and “Files Creation Mode parameter” on
page 3-44 for information on setting these functions.

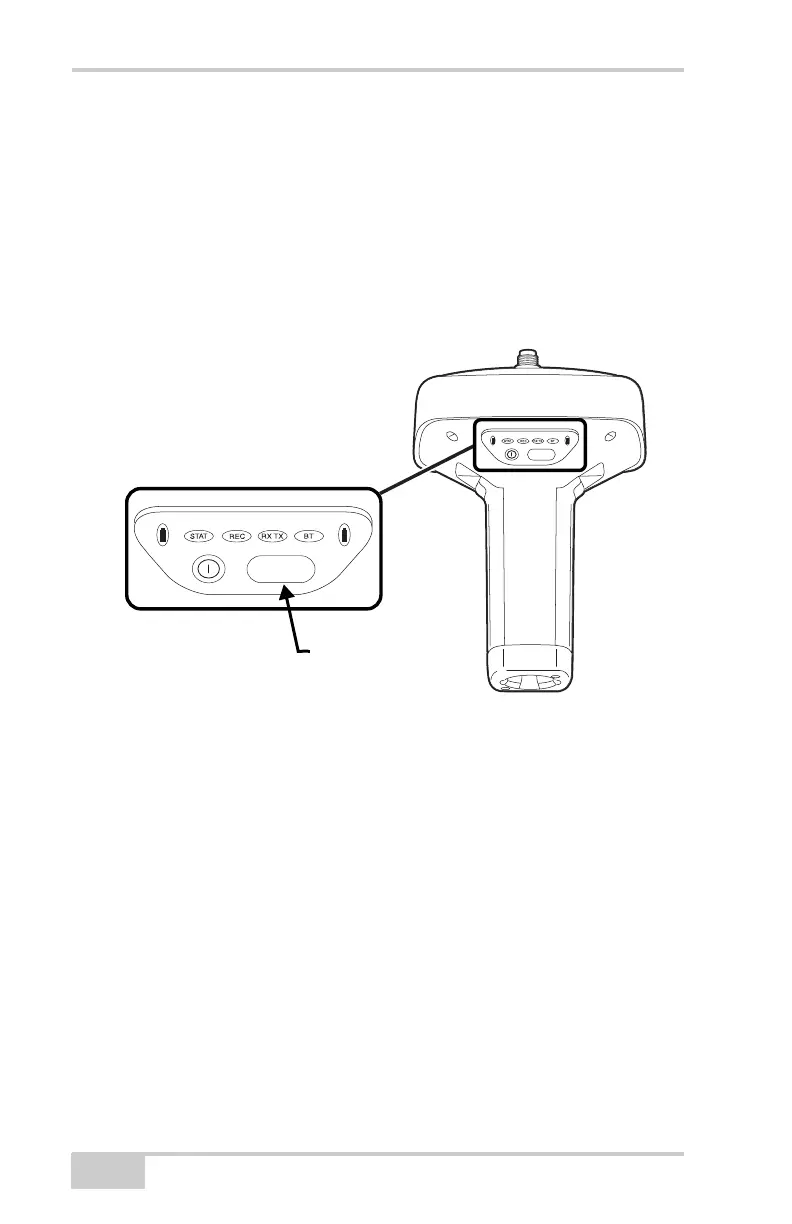

Figure 4-6. FUNCTION Button Functions
To toggle between post-processing modes, press the
FUNCTION button for less than 1 second when “Occupation mode
switch” has been enabled using PC-CDU.
To change the information mode of the receiver, press the
FUNCTION button for less than 1 second when “LED blink mode
switch” has been enabled using PC-CDU.
To change the baud rate of the receiver’s serial port to 9600 bps,
press the FUNCTION button for 5–8 seconds. This is useful if the
data collector does not support the rate that the receiver port is set to.
After about five seconds, the REC LED becomes red. Release the
FUNCTION button during the next three seconds.
FUNCTION
FUNCTION
FUNCTION
Button
Press the FUNCTION
button for 1–5
seconds to start/stop
data logging.
